MOOG泵HPR18A7RKP140TM28R1Z00技术参数

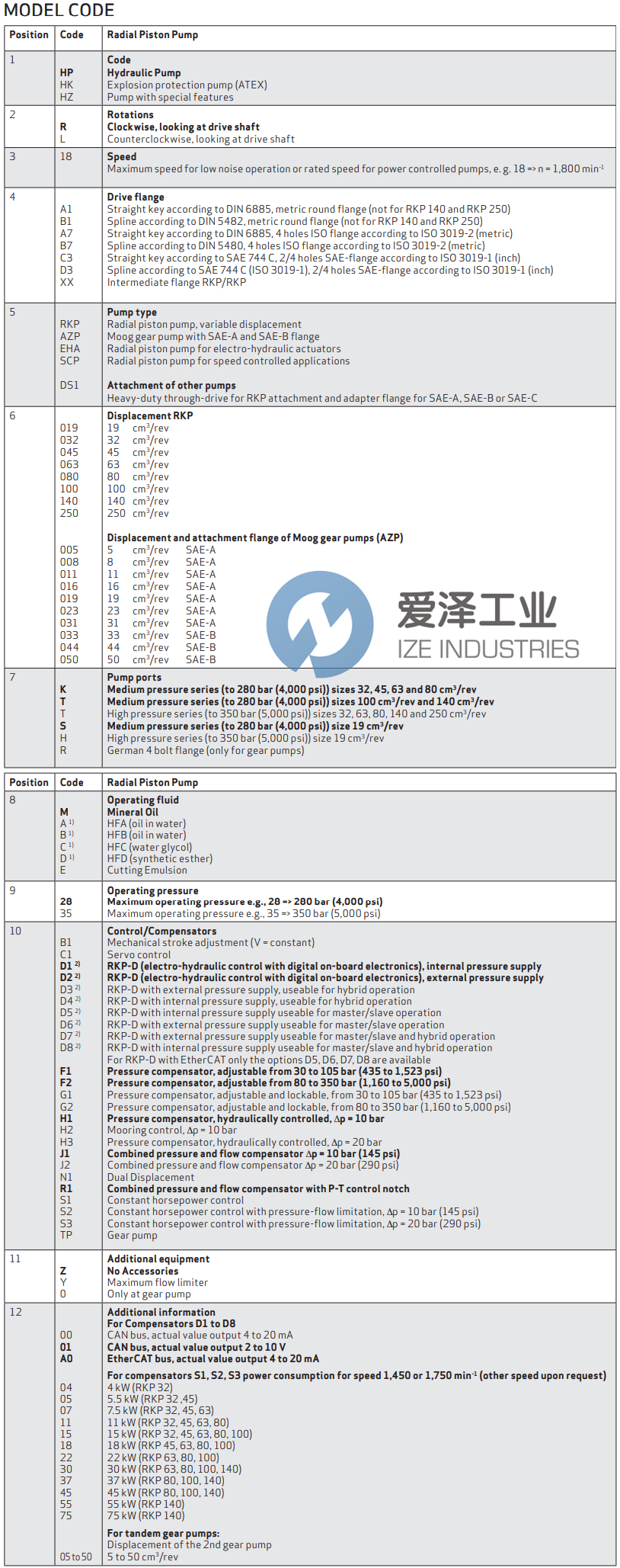

MODEL CODE | HPR18A7RKP140TM28R1Z00 |
Code | Hydraulic Pump |
Rotations | Clockwise, looking at drive shaft |
Speed | Maximum speed for low noise operation or rated speed for power controlled pumps, e. g. 18 => n = 1,800 min-1 |
Drive flange | Straight key according to DIN 6885, 4 holes ISO flange according to ISO 3019-2 (metric) |
Pump type | Radial piston pump, variable displacement |
Displacement RKP | 140 cm3/rev |
Pump ports | Medium pressure series (to 280 bar (4,000 psi)) sizes 100 cm3/rev and 140 cm3/rev |
Operating fluid | Mineral Oil |
Operating pressure | Maximum operating pressure e.g., 28 => 280 bar (4,000 psi) |
Control/Compensators | Combined pressure and flow compensator with P-T control notch |
Additional equipment | No Accessories |
Additional information | CAN bus, actual value output 4 to 20 mA |
MOOG泵RKP系列介绍
RKP 泵受益于低噪音水平。 尺寸 32 至 250 配有滑动冲程环。 大吸入口支持使用宽吸入管路。
穆格径向柱塞泵 RKP 的其他优势包括：
• 反应快
• 紧凑的模块化设计使泵的选择能够与应用相匹配
• 良好的吸力特性
• 低压纹波
The RKP pumps benefit from low noise levels. Sizes 32 to 250 are fitted with a sliding stroke ring. The big suction port supports the use of wide suction lines.
Further Advantages of the Moog Radial Piston Pump RKP are:
• Fast response
• Compact modular design enabling the pump selection to match the application
• Good suction characteristics
• Low pressure ripple
MOOG泵RKP系列选型
MOOG泵RKP系列其他常用型号：
MOOG HPR18A1 RKP019SM28F2Z00
MOOG HPR18A1 RKP032KM28F2Z00
MOOG HPR18A1 RKP045KM28F2Z00
MOOG HPR18A1 RKP063KM28F2Z00
MOOG HPR18A1 RKP080KM28F2Z00
MOOG HPR18A1 RKP100TM28F2Z00
MOOG HPR18A7 RKP140TM28F2Z00
MOOG HPR18A7 RKP250TM35F2Z00
MOOG HPR18A1 RKP01 9SM28H1Z00
MOOG HPR18A1 RKP032KM28H1 Z00
MOOG HPR18A1 RKP045KM28H1Z00
MOOG HPR18A1 RKP063KM28H1Z00
MOOG HPR18A1 RKP080KM28H1Z00
MOOG HPR18A1 RKP1 00TM28H1Z00
MOOG HPR18A7RKP140TM28R1Z00
