NUMATICS控制阀081SA400M000061技术参数
Code | 081SA400M000061 |
Valve Series & Port Size | 081 = 1/8 |
Valve Type | SA = Single Direct Solenoid, Spring Return w/Flush Non-locking Override |
Function | 4 = 2 Position 4-Way (5/2) |
Mounting | 00 = Valve Unit, w/o Mounting |
Wiring Option | M = Plug-in, w/ Light, VDC |
Port Type | 0 = NPTF Pressure Ports w/NPTF Conduit Ports or Valve Unit w/o Mounting |
Options | 000 = No Options |
Voltage | 61 = 24 VDC |
NUMATICS控制阀Mark 8系列介绍
Numatics 系列 Mark 8 是一系列气动方向控制阀,设计用于在恶劣或具有挑战性的环境中可重复和可靠地使用。该阀门的模块化设计便于安装和配置。其单元到底座的电插头允许即时更换阀门,而无需断开管道或接线。Mark 8 系列阀门循环寿命长,是高循环率机器应用的理想选择。
特征
插入式底座或歧管、螺线管和可选的速度控制三明治简化了安装
现场总线电子设备和 I/O 可轻松联网
通过压力调节器最大限度地减少能源消耗
通过速度控制优化机器循环率
提供整体速度控制和调节器
NEMA 4/IP65 等级,适用于具有挑战性的条件
The Numatics Series Mark 8 is a line of pneumatic directional control valves designed for repeatable and reliable use in harsh or challenging environments. The valve´s modular design permits easy installation and configuration. Its unit-to-base electrical plug permits instant valve replacement without disconnecting piping or wiring. With industry-leading cycle life, Mark 8 Series valves are ideal for high cycle-rate machine applications.
Features
Plug-in base or manifold, solenoid, and optional speed control sandwich simplify installation
Fieldbus electronics and I/O capable for easy networking
Minimizes energy consumption via pressure regulators
Optimizes machine cycle rate via speed controls
Integral speed control and regulators are available
NEMA 4/IP65 rated for challenging conditions

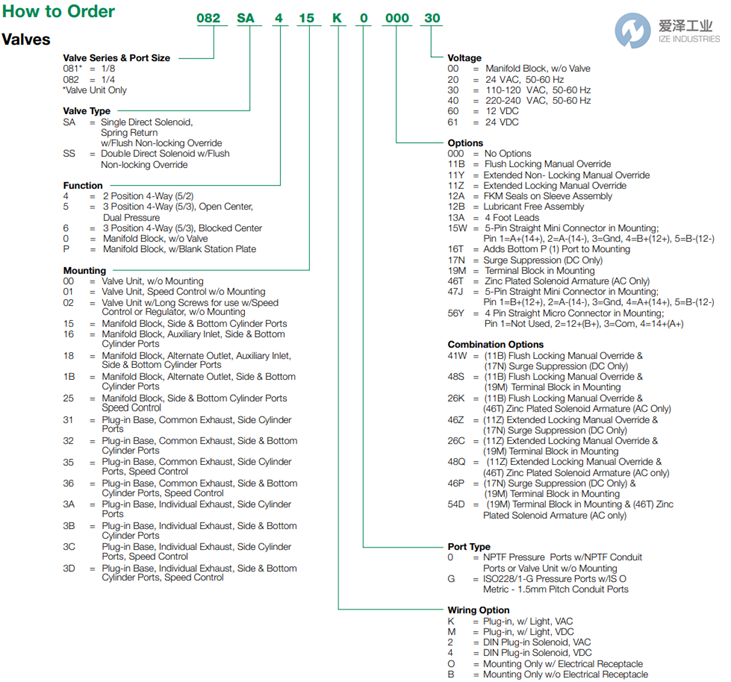

NUMATICS控制阀Mark 8系列选型
NUMATICS控制阀Mark 8系列其他常用型号:
NUMATICS 081SA400K000030
NUMATICS 081SA402K000030
NUMATICS 081SA400M000061
NUMATICS 082SA416K000030
NUMATICS 081SA415K000030
NUMATICS 082SA425K000030
NUMATICS 082SS415K000030
NUMATICS 082SS415K000030
NUMATICS 081SA400KO00030
NUMATICS Control Valves NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年,定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气,液压以及气动解决方案的合作伙伴,我们利用我们的全球协作团队,为客户提供先进解决方案,市场知识以及相关增值服务来帮助优化客户的工作效率,提高可靠性和安全性,致力于成为工业产品和解决方案的优质渠道。
如果有任何关于NUMATICS控制阀081SA400M000061的疑问,请随时与我们沟通(021-31006702)。我们将尽全力解决您的问题。
If you have any question for NUMATICS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
NUMATICS控制阀Mark 8系列081SA400M000061技术参数及选型
