BELLOFRAM稳压器3512/3522系列技术参数
Model | Type 3512/3522 |
Performance | Full-Scale Accuracy 0.5% |
Electrical Inputs | |
Supply Voltage | 24VDC (optional 15VDC) |
Stand by Supply Current | 80 mA |
Maximum Supply Current | 325 mA |
Supply Pressure | Max. Output PSIG (BAR) Max. Supply PSIG (BAR) |
Outputs | |
Atmospheric Pressure Ranges | 30, 100, 150 PSIG |
Forward Flow Capacity | 60 SCFM (1700 LPM) |
Exhaust Flow Capacity | 15 SCFM (425 LPM) |
Analog Setpoint Control | 0-5V, 0-10V, 4-20mA |
Digital Setpoint Control | 0-100% full scale (installed sensor=100%) |
Digital Communications | Serial RS-485 interface |
Serial Address | Addresses a-z available (except p and q reserved). 'r' default selectable and configurable via Serial or Keypad Display Interface |
Loop Options | Regulate first loop (onboard sensor) or 2nd loop (remote sensor) |
Remote Sensor Feedback | 0-10V, 0-5V, 4-20 mA, (Forward and Reverse Acting) |
Analog Output Source | Follow Setpoint, Output Pressure, or Remote Sensor |
Analog Output Range | 0-10V, 0-5V |
Environmental | |
Operating Temperature | 32-141˚F (0-60˚C) |
Media-Wetted Materials | Aluminum, copper alloys, nickel, buna-n, silicon, 316SS |
BELLOFRAM稳压器3512/3522系列介绍
3512 型单回路和 3522 双回路是单一单元 - 集成控制器和增压器。 3512/3522 提供电磁阀技术，正向流量超过大多数标准工业电子调节器或 I/P 传感器。 提供本地键盘编程选项或用于 PLC 或 PC 控制的 RS-485 数字通信。 许多输出压力范围可达到 150 psi。 凭借可靠的双电磁阀系统和集成压力传感器，可获得 ± 0.5% 的精度。
应用包括； 夹持器控制、焊接操作、执行器控制、机械自动化、精密机器人、卷筒纸张力、半导体设备、模塑和成形操作以及轮胎制造和测试。
特征
• 串行接口
• 数字或模拟输入
• 模拟监视器输出
• 单回路和双回路控制
• 前向流量高达 60 SCFM
• 数字显示
The Type 3512 single loop and 3522 double loop are single units - integrated controller and booster. The 3512/3522 offers solenoid valve technology with forward flow exceeding those of most standard industrial electronic regulators or I/P transducers. Available with a local keypad programming option or RS-485 digital communications for PLC or PC control. Many output pressure ranges are available up to 150 psi. With a reliable twin solenoid valve system, and an integral pressure sensor, an accuracy of ± 0.5% is obtainable.
Applications include; Gripper Control, Welding Operations, Actuator Control, Machinery Automation, Precision Robotics, Web Tension, Semiconductor Equipment, Molding and Forming Operations and Tire Manufacturing and Testing.
Features
• Serial Interface
• Digital or Analog Inputs
• Analog Monitor Output
• Single Loop and Dual Loop Control
• Forward Flow up to 60 SCFM
• Digital Display

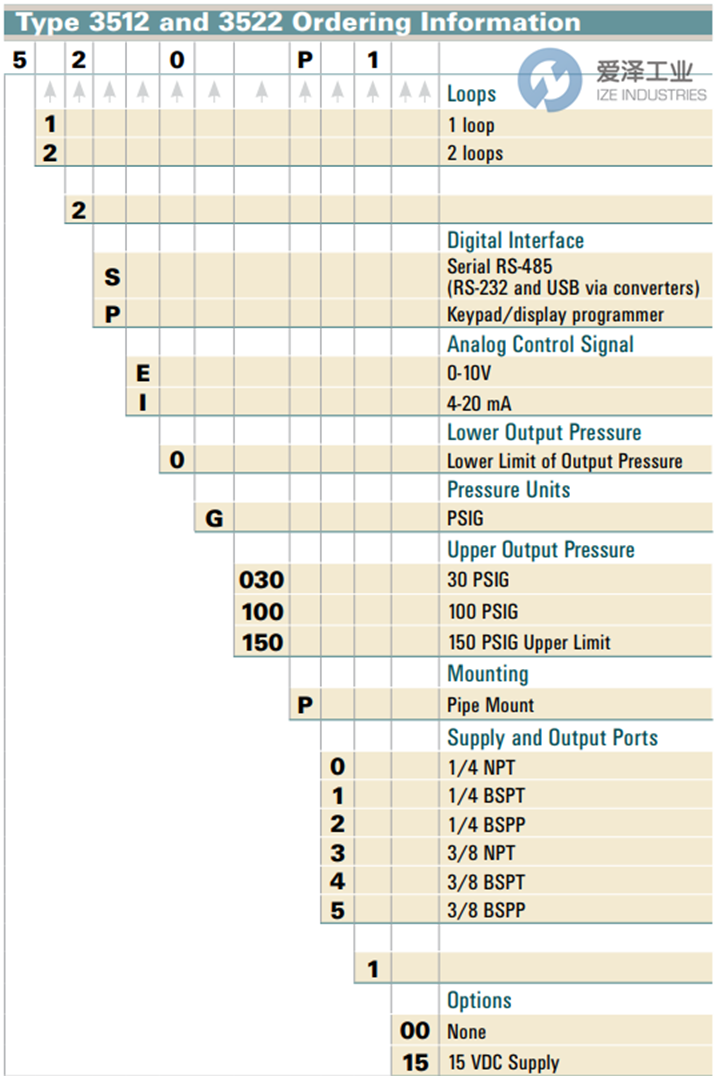

BELLOFRAM稳压器3512/3522系列选型
BELLOFRAM稳压器3512/3522系列其他常用型号：
BELLOFRAM 522PE0G100P0100
BELLOFRAM Regulators NEW + ORIGINAL+ ONE YEAR WARRANTY
