SCHROEDER过滤器TF1系列技术参数
Filter Housing Specifications | |
Flow Rating: | Up to 30 gpm (120 L/min) for 150 SUS (32 cSt) fluids |
Max. Operating Pressure: | 300 psi (20 bar) |
Min. Yield Pressure: | 1200 psi (80 bar), per NFPA T2.6.1 |
Rated Fatigue Pressure: | 270 psi (19 bar), per NFPA T2.6.1-2005 |
Temp. Range: | -20°F to 225°F (-29°C to 107°C) |
Bypass Setting: | Cracking: 30 psi (2 bar) |
Porting Head: | Cast Aluminum |
Element Case: | Steel (TF1) or Stainless Steel (WTF1) |
Weight of TF1-1A: | 5.1 lbs. (2.3 kg) |
Weight of TF1-2A: | 6.3 lbs. (2.9 kg) |
Element Change Clearance: | 3.50" (90 mm) |
Fluid Compatibility | |
Type Fluid | Appropriate Schroeder Media |
Petroleum Based Fluids | All E media (cellulose) and Z-Media® (synthetic) |
High Water Content | All Z-Media® (synthetic) |
Invert Emulsions | 10 and 25 µ Z-Media® (synthetic) |
Water Glycols | 3, 5, 10 and 25 µ Z-Media® (synthetic) |
Phosphate Esters | All Z-Media® (synthetic) with H (EPR) seal designation |
Skydrol® | 3, 5, 10 and 25 µ Z-Media® (synthetic) with H.5 seal designation |
SCHROEDER过滤器TF1系列介绍
• 提供管道、SAE 直螺纹、法兰和 ISO 228 端口
• 各种 Dirt Alarm® 选项
• 提供无滤芯指示器
• 提供 NPTF 入口和出口母测试端口
• 提供磁铁插件
• 可提供外壳排油塞
• Offered in pipe, SAE straight thread, flange and ISO 228 porting
• Various Dirt Alarm® options
• Available with No-Element indicator
• Available with NPTF inlet and outlet female test ports
• Available with magnet inserts
• Available with housing drain plug

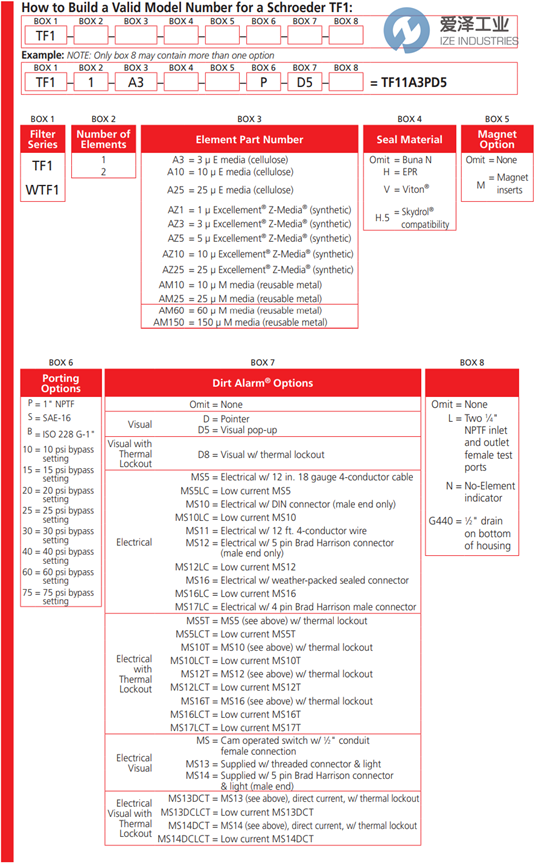

SCHROEDER过滤器TF1系列选型
SCHROEDER过滤器TF1系列其他常用型号：
SCHROEDER TF11A10PX
SCHROEDER TF11A10PXMS5
SCHROEDER TF11A10SD
SCHROEDER TF11A10SD5
SCHROEDER TF 11A10SMS
SCHROEDER TF11A10SMS10
SCHROEDER TF11A10SMS12LC
SCHROEDER TF11A10SMS14AC
SCHROEDER TF11A10SX
SCHROEDER TF11AM150HSD5
SCHROEDER NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于SCHROEDER过滤器TF11AM150HSD5的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for SCHROEDER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
SCHROEDER过滤器TF1系列TF11AM150HSD5技术参数及选型
