PARKER节流阀TEA032EW09B2NLWJ技术参数
Technical Specifications | |
Port Connection: | NG32 |
Function: | Flow direction from B to A |
Seal Material: | NBR |
Input Voltage: | 6 VDC |
Solenoid Option: | 24 V / 1.25 A |
Product Series: | Throttle valve |
Operation Type: | Pilot |
Actuation Type: | Proportional |
Function: | 2-way |
Mounting Type: | Slip-in cartridge |
Mounting Position: | Unrestricted |
Configuration: | N/A |
Maximum Operating Pressure: | 350 bar |
Minimum Pilot Pressure: | > 25 % of system pressure |
Maximum Flow Rate: | 950 L/min |
Flow Rate: | N/A |
Flow Direction: | B to A |
Maximum Operating Temperature: | 60 °C |
Minimum Operating Temperature: | -20 °C |
Seal Material: | NBR |
For Fluid Type: | Hydraulic oil according to DIN 51524 |
Weight: | 9 kg |
Body Material: | Steel/Cast iron (cover) |
PARKER节流阀TEA系列介绍
TEA 系列比例节流阀具有高达 9500 l/min 的流速和快速响应时间，适用于注塑和压铸应用。集成在先导回路中的方向阀可提供安全功能。
特点/优势：
• 符合 ISO 7368 的腔体和安装模式 - 便于快速集成
• 最大工作压力高达 350 bar - 适用于要求苛刻的液压应用
• 高达 9500 l/min 的高流量 - 可实现高效运行
• 各种尺寸，NG25 - NG100 - 允许极端可变的使用
With flow rates up to 9500 l/min and fast response times, proportional throttle valves series TEA are predestined for injection molding and die cast applications. The directional valve integrated in the pilot circuit provides the safety function.
Features/Benefits:
• Cavity and mounting pattern according to ISO 7368 - for quick, easy integration
• Maximum operating pressure up to 350 bar - suitable for demanding hydraulic applications
• High flow rates up to 9500 l/min - enables efficient operation
• Various sizes, NG25 - NG100 - allows extremely variable use

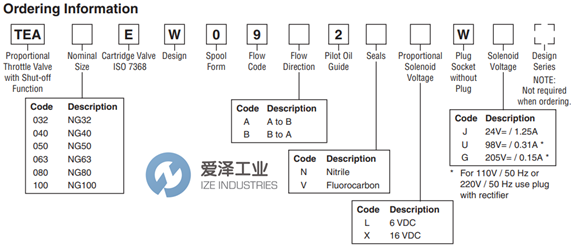

PARKER节流阀TEA系列选型
PARKER节流阀TEA系列其他常用型号：
PARKER TEA025EW09A2NXWJ
PARKER TEA040EW09B2NXWU
PARKER TEA063EW09A2NXWJ
PARKER TEA032EW09A2NLWJ
PARKER TEA032EW09A2NXWJ
PARKER TEA032EW09B2NLWJ
PARKER TEA032EW09B2NXWG
PARKER TEA032EW09B2NXWJ
PARKER TEA032EW09B2VXWJ
PARKER TEA040EW09A2NLWJ
PARKER TEA040EW09A2NXWJ
PARKER TEA040EW09A2VXWJ
PARKER TEA040EW09B2NLWJ
PARKER TEA040EW09B2NXWJ
PARKER TEA040EW09B2VLWJ
PARKER Throttle Valve NEW + ORIGINAL+ ONE YEAR WARRANTY
