LITTLE GIANT泵532012 35-OM技术参数
Electrical | |
HP | 1/12 hp |
Frequency | 50/60 Hz |
Amps - Full Load | 0.6 A |
Full Load Watts | 132 W |
Volts | 230 VAC |
Cord Length | 2 ft / 0.61 m |
Operation | |
Max Flow Rate - 60 Hz | 2.83 gpm / 170 gph / 644 Lph / 10.73 Lpm / 0.64 m³/h |
Shut-Off | 75 ft / 22.86 m |
Minimum Head - 60Hz | 10 ft / 3.05 m |
Shut Off Height - 60Hz | 265.75 ft / 81 m |
Max PSIG - 60Hz | 35 PSI |
Switch Type | Manual |
Liquid | |
Max Fluid Temperature | 120°F |
Min Flow Rate - 60Hz | 0.17 gpm / 10 gph / 38 Lph / 0.63 Lpm / 0.04 m³/h |
Materials of Construction | |
Pump Body Material | Plastic |
Impeller Material | Ryton |
Installation | |
Discharge | 0.38 " |
Suction Diameter | 0.38 " |
Suction Type | Barbed |
Product Weight | 2.7 lb / 1.22 kg |
Product Width | 4 " / 10.16 cm |
Product Height | 2.9 " / 7.37 cm |
Product Length | 6.9 " / 17.53 cm |
LITTLE GIANT泵35-OM系列介绍
Little Giant 的35-OM非潜水式高压泵是1/11马力的风扇冷却电机、热塑性塑料外壳、尼龙蜗壳，并包括一个旁路适配器。适用于地毯清洁剂、分配器显示器和高压清洗机。
特征
• 高压 (35 PSIG)
• 尼龙泵头
• Ryton® 叶轮
• 碳/陶瓷轴封
• 3/8" 带刺进出水口
• 1/4" 带刺旁路适配器
• 双绝缘电机
The 35-OM non-submersible, high-pressure pump from Little Giant is 1/11 horsepower fan-cooled motor, Thermoplastic housing, nylon volute, and includes a bypass adapter. Practical for carpet cleaners, dispenser displays and pressure washers.
Features
• High-pressure (35 PSIG)
• Nylon pump head
• Ryton® impeller
• Carbon/Ceramic shaft seal
• 3/8" barbed intake & discharge
• 1/4" barbed by-pass adapter
• Double-insulated motor

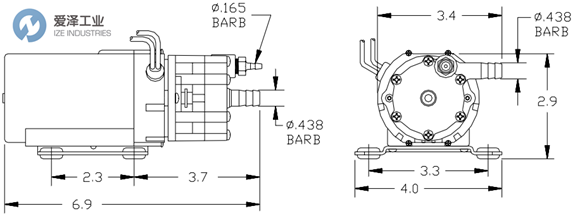

LITTLE GIANT泵35-OM系列技术尺寸
LITTLE GIANT泵35-OM系列其他常用型号：
LITTLE GIANT 532012 35-OM
LITTLE GIANT 532002 35-OM
LITTLE GIANT Pump NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于LITTLE GIANT泵532012 35-OM的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for LITTLE GIANT products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
