SUN线圈770223技术参数
Technical Data | |
Maximum Coil Temperature at 68°F (20°C) Ambient | 218°F (105°C) |
Arc Suppression (TVS) | Included |
Power Consumption (cold) - at rated voltage | 22 watts |
Maximum Ambient Temperature | 122 °F |
Voltage/Frequency | 230 VAC 50/60 Hz |
Operating Voltage Range | +/- 10% nominal |
Duty Cycle Rating | 100% |
Connector | ISO4400 - EN/DIN175301-803, Form A (ISO/DIN 43650) 3-pin |
Connector Environment Rating | IP65/IP67 |
Solenoid Tube Diameter | .75 in. |
Coil Nut Torque | 4.5 lbf in. |
Model Weight | 0.51 lb. |
SUN线圈770223介绍
230 VAC 50/60 Hz 线圈，带 ISO/DIN 43650 A 型连接器和 TVS 二极管
技术特点
· 线圈绕组采用 N 级（额定温度 392°F [200°C]）漆包线。
· 需要使用带配套连接器的电源线，但产品不包含电源线。
· 该线圈符合CE标准。它满足低电压指令（2006/95/EC）和EN 60204-1:2006的要求。
· 交流 (AC) 线圈是内置全波整流器（型号 2W10G）的直流线圈。因此，不会产生吸合电流，即使有东西阻碍阀门换挡，线圈也不会烧毁。
· 直流线圈中内置TVS浪涌抑制二极管。标称击穿电压：400V。型号代码1.5 KE400CA。75°C时的稳态功耗为6.5 W，峰值脉冲功耗为1500 W（持续1 ms，非重复）。
· 该线圈具有磁对称性，可以以任意方向安装在螺线管上，而不会影响性能。
· IP防护等级取决于线圈连接器和所使用的配套连接器。
· 符合RoHS标准。受限材料含量低于总重量的0.1%。
· 外部钢壳镀有透明的三价锌。
230 VAC 50/60 Hz coil with ISO/DIN 43650, Form A connector with TVS Diode
Technical Features
· Coil windings utilize Class N, (392° F [200 °C] rated) magnet wire.
· Power cable with mating connector is required and is not included with product.
· This coil is CE compliant. It meets the requirements of the Low Voltage Directive (2006/95/EC) and EN 60204-1:2006.
· Alternating current (AC) coils are DC coils that contain an integral full wave rectifier, model code 2W10G, molded into the coil. Because of this, there is no pull-in current and coils don't burn out if something prevents the valve from shifting.
· A TVS surge suppression diode is built into DC coils. Nominal breakdown voltage; 400V.Model code 1.5 KE400CA. Steady state power dissipation @ 75°C is 6.5 W and peak pulse dissipation is 1500 W for 1 ms, nonrepetitive.
· The coil is magnetically symmetrical and can be mounted in either direction on the solenoid tube without affecting performance.
· IP rating is dependent on the coil connector and the mating connector used.
· RoHS compliant. Restricted materials less than 0.1% total by weight.
· The external steel shell is plated with clear zinc trivalent.

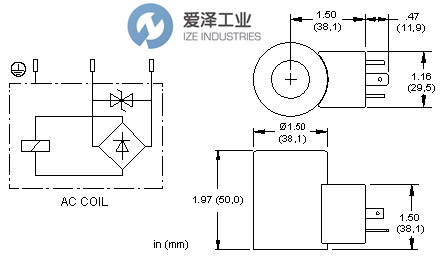

SUN线圈770223规格尺寸
