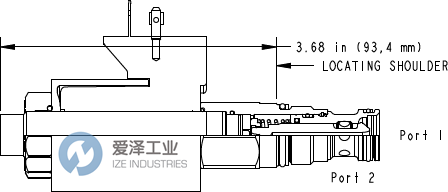

SUN阀DTDF-MCN224技术参数
Technical Data | |
Cavity | T-11A |
Series | 1 |
Capacity | 10 gpm |
Maximum Operating Pressure | 5000 psi |
Factory Pressure Settings Established at | blocked control port (dead headed) |
Control Pilot Flow | 7 - 10 in³/min. |
Adjustment - No. of CW Turns from Min. to Max. setting | 5 |
Valve Hex Size | 7/8 in. |
Valve Installation Torque | 30 - 35 lbf ft |
Adjustment Screw Internal Hex Size | 5/32 in. |
Locknut Hex Size | 9/16 in. |
Locknut Torque | 80 - 90 lbf in. |
Model Weight | 0.33 lb. |
Seal kit - Cartridge | Buna: 990011007 |
Seal kit - Cartridge | EPDM: 990011014 |
Seal kit - Cartridge | Polyurethane: 990011002 |
Seal kit - Cartridge | Viton: 990011006 |
SUN阀DTDF-MCN224产品介绍
这款电磁操作的 2 通 2 位阀芯是一种直动式、阀瓣式方向阀。该阀有常开或常闭两种配置，设计用于 740 和 747 系列线圈。
由于采用阀瓣式结构，该阀的泄漏极低。
• 电磁管组件的疲劳额定值为 5000 psi (350 bar)。
• 该阀是直接驱动的，无需低液压即可运行。
• 使用常闭选项时，该阀适用于负载保持应用。如果发生电源故障，阀门将弹簧关闭。
• 配置有 EPDM 密封件的阀芯用于磷酸酯流体系统。接触石油基流体、油脂和润滑剂会损坏密封件。
• 该阀的所有配置都包括锌镍镀层，作为 1000 小时盐雾防护的标准配置。
• 线圈连接器选项提供高达 IP69K 的防护等级。
• 该阀芯同时使用 740 系列高功率线圈和 747 系列危险位置线圈。
• 该阀芯具有手动超控选项。
• 阀门的泄漏率极低；小于 10 滴/分钟 @ 5000 psi（0.7 cc/分钟 @ 350 bar）。
• 在配备 D 或 L 控制的型号上，手动超控中的制动机构用于临时启动。D、L 和 T 手动控制组件的机械寿命约为 7,000 次循环。
• 该阀采用湿式电枢设计。这意味着工作流体围绕电枢并暴露在线圈产生的热量中。如果线圈长时间通电，这可能是一个因素。某些流体，特别是水/乙二醇混合物，在这些温度下会随着时间的推移而分解，并形成会影响滤芯功能的清漆。
• 提供各种线圈端接和电压选项，带或不带浪涌保护。
• 螺线管独特的磁性设计可实现高效螺线管，每瓦特消耗产生高阀芯驱动力，从而实现可靠的阀门换向。
• 线圈可以以任意方向安装在管上。
• 采用 Sun 浮动式结构，更大限度地减少由于安装扭矩过大和/或腔体/滤芯加工变化而导致内部零件卡住的可能性。
This solenoid-operated 2-way, 2-position cartridge is a direct-acting, poppet-style directional valve. The valve is available in either a normally open or normally closed configuration and is designed to be used with 740 and 747 Series coils.
Due to the poppet style construction, this valve has extremely low leakage.
• The solenoid tube assembly is fatigue rated for 5000 psi (350 bar) service.
• This valve is direct actuated and requires no minimum hydraulic pressure for operation.
• This valve is suitable for load holding applications when using the Normally Closed option. In the event of power failure, the valve will spring closed.
• Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
• All configurations of this valve include zinc-nickel plating as standard for 1000-hour salt fog protection.
• Coil connector options offer ratings up to IP69K.
• This cartridge utilizes both 740 Series high-power and 747 Series hazardous location coils.
• This cartridge has an option for manual override.
• Valves exhibit extremely low leakage rates; less than 10 drops/min. @ 5000 psi (0,7 cc/min @ 350 bar).
• On models equipped with the D or L control, the detent mechanism in the manual override is meant for temporary actuation. The D, L and T manual control assemblies have a mechanical life expectancy of approximately 7,000 cycles.
• This valve utilizes a wet armature design. This means that the working fluid surrounds the armature and is exposed to the heat generated by the coil. This can be a factor if the coil is energized for long periods of time. Some fluids, notably water/glycol mixtures, break down at these temperatures over time and form varnishes that will affect the function of the cartridge.
• A wide variety of coil termination and voltage options are available, with and without surge protection.
• The solenoid's unique magnetic design results in a high efficiency solenoid, yielding high spool actuating force per Watt expended, leading to reliable valve shifting.
• Coils can be mounted on the tube in either direction.
• Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
SUN阀DTDF系列其他常用型号：
SUN DTDF-MCN224
SUN DTDFMCN211
SUN DTDFMCN212
SUN DTDFMCN212D
SUN DTDFMCN214
SUN DTDFMCN214D
SUN DTDFMCN223
SUN DTDFMCN224
SUN DTDFMCN224D
SUN DTDFMCN228
SUN DTDFMCN228D
SUN DTDFMCN612
SUN DTDFMCN612D
SUN DTDFMCN614
SUN DTDFMCN614D
