NORGREN气缸M/146系列技术参数
Technical Features | |
Medium: | Compressed air, filtered, lubricated or non-lubricated |
operation: | m/146000, m/146100, m/146200 dual action, with adjustable customization |
Models： | M/146000 with internal guide |
Operating pressure: | 1. . . 8 bar (14... 116 psi) |
Cylindrical diameter: | 16, 20, 25, 32, 40, 50, 63, 80 mm |
Max strokes: | ø 16. . . 40 mm 8500 mm |
Operating temperature: | -30°C + 80°C max. (-22 ... + 176 °F) Air supply must be dry enough to avoid ice formation at temperature below + 2 ° C (+ 35 ° F) |
Material | |
End covers: | aluminium sheet, moulded plastics (™ 16) and anodized aluminium (™ 20 & 80) |
Yoke: | anodized aluminium, moulded plastics (™ 16 & 20) |
carriage, closure and cover: | aluminium diecast |
guide bridge and profile barrel: | anodized aluminium |
sealing strip, wiper and piston seal: | PUR |
cover strip: | PA |
other seals: | NBR |
mounting screw: | A2E |
shim ring: | stainless steel (A2) |
NORGREN气缸M/146系列介绍
ø16……80mm
新型轻质设计挤压与通用安装凹槽
经过证明的专利密封系统
防尘作为标准(ø25……63mm)
与M/46000系列的互换性
ø 16. . . 80 mm
New lightweight design extrusion, universal mounting groove
Verified and patented sealing system
Dust Protection as standard (ø 25... 63 mm)
Interchangeability with M/46000 Series

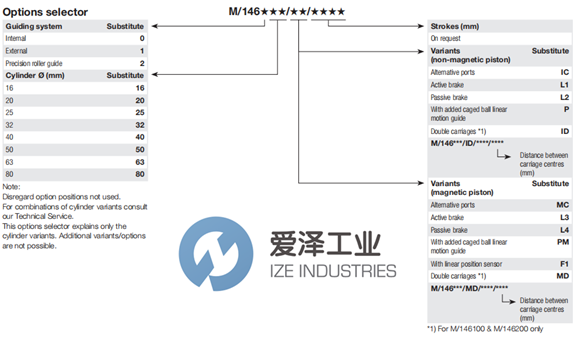

NORGREN气缸M/146系列选型
NORGREN气缸M/146系列其他常用型号：
NORGREN M/146150/M/1220
NORGREN M/146150/M/500
NORGREN M/146150/M/600
NORGREN M/146150/M/400
NORGREN M/146150/M/800
NORGREN M/146150/M/300
NORGREN M/146150/M/1000
NORGREN M/146150/M/900
NORGREN M/146150/M/700
NORGREN Cylinder NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于NORGREN气缸M/146150/M/1220的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for NORGREN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
NORGREN气缸M/146系列M/146150/M/1220技术参数及选型
