BUSAK+SHAMBAN(B+S) V型封TWVL02750-N6T50产品参数
For shaft diameter d1 | 260 - 285 |
Inside diameter d | 247 |
V—Ring FORSHEDA Ref. | V-275L/LX |
TSS Part No. Type L | TWVL02750 |
TSS Part No. Type LX | TWLXV2750 |

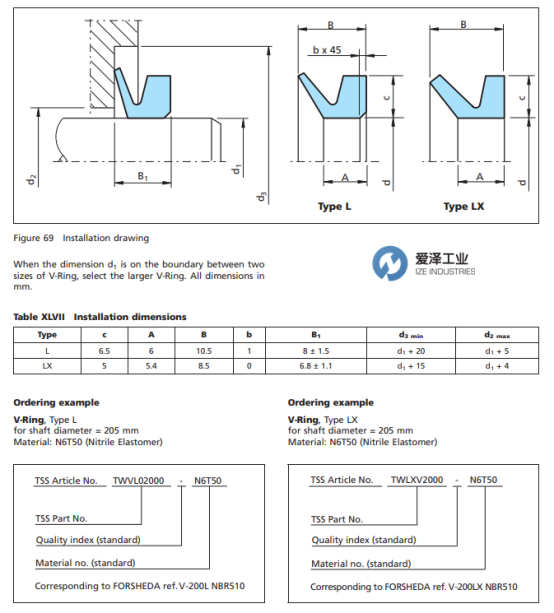

BUSAK+SHAMBAN(B+S) V型封产品介绍及选型
Trim the adjustable clamping band to the right length by using a pair of shears. Rivet the adjustable length and the end attachment together by using a standard pop riveter and the three pop rivets.
Locate the V-Ring in correct position relative to the counterface, i.e. the predetermined B1 dimension.
Smear the V-Ring with a thin film of grease in the groove designed for the clamping band.
Using the attachments supplied with the band sections, join them together and position the complete band in the body groove with the screw heads facing the direction of shaft rotation. Turn the attachment screws a few turns one by one until the band is tight.
Check that the entire band fits snugly in the body groove.
The clamping band A/AX is meant to be used with V-Rings type A and AX on shaft diameters from 200mm and larger. The clamping band keeps the V-ring in position both axially and radially and can be re-used several times. The clamping band is supplied in 5m lengths. Screw joints to connect the clamping band as well as the buckle are ordered on separate article number. The band is made of stainless steel AISI 301, the screw joint is made of AISI 304 with galvanized screw.
使用一把剪刀将可调节夹带修剪到合适的长度。使用标准流行铆钉和三个流行铆钉将可调节长度和末端附件铆接在一起。
将 V 形环定位在相对于配合面的正确位置，即预定的 B1 尺寸。
在为夹紧带设计的凹槽中，在 V 形环上涂抹一层薄薄的油脂。
使用带子部分随附的附件将它们连接在一起，并将整个带子放置在主体凹槽中，螺钉头朝向轴的旋转方向。将连接螺钉一一转动几圈，直到带子拧紧。
检查整个带子是否紧贴在主体凹槽中。
夹紧带 A/AX 旨在与 A 型和AX型V型圈一起用于200毫米及更大的轴直径。夹紧带将 V 形环保持在轴向和径向位置，并可多次重复使用。夹紧带的长度为5m。用于连接卡箍和带扣的螺纹接头在单独的订货号中订购。表带由不锈钢AISI 301制成，螺纹接头由 AISI 304 制成，带有镀锌螺钉。
BUSAK+SHAMBAN(B+S) V型封其他常见型号：
BUSAK+SHAMBAN TWVL02750-N6T50
BUSAK+SHAMBAN TWVLV6500
BUSAK+SHAMBAN TWVLV7000
BUSAK+SHAMBAN TWVLV7250
BUSAK+SHAMBAN TWLXV6500
BUSAK+SHAMBAN TWLXV7000
BUSAK+SHAMBAN TWLXV7250
BUSAK+SHAMBAN TWVLV5250
BUSAK+SHAMBAN TWVLV5500
BUSAK+SHAMBAN TWVLV6000
BUSAK+SHAMBAN TWLXV5250
BUSAK+SHAMBAN TWLXV5500
BUSAK+SHAMBAN TWLXV6000
