WALTHER喷雾阀SMS-22技术参数
TECHNICAL DATA | |
Process pressure | max. 35 [bar] |
Control air pressure | min. 5 to 6 [bar] |
Atomizer air pressure | 0,5 to 5 [bar] |
Process connection (medium) | G1/4“ incl. hose screw joint 6/4 |
Process connection (air) | hose screw joint 6/4 |
Dimensions l x w x h | 131 x 23,5 x 57,5 [mm] |
Weight | 0,5 [kg] |
Nozzle & needle | optionally hardened (kolsterised) |
WALTHER喷雾阀SMS-22产品介绍
22 系列喷雾阀为多种喷雾应用奠定了坚实的基础。 喷雾阀适用于不同介质（例如油、分离剂、油漆、油脂等）的间歇和连续应用。 这些阀门通过外部气动 3/2 通阀进行控制。 阀针通过压缩空气压力打开和关闭。 阀针具有压缩空气支持的关闭装置，即使在高过程压力下，也能保证该阀门系列中喷嘴的牢固锁定。 独立的雾化器进气口允许用户独立切换该系列的雾化器空气，无论压缩空气的状态如何。
The Spray Valves of series 22 provide a solid basis for multiple spray applications. The Spray Valves are suitable for an intermitting as well as a continuing application of different media (e.g. oils, separating agents, paint, greases etc.). The valves are controlled via an external, pneumatic 3/2-way valve. The valve needle is opened and closed by compressed air pressure. The valve needle has a compressed-air supported closing which will guarantee a secure locking of the nozzle in this valve series, also under high process pressures. A separate atomizer air inlet allows you switch the atomizer air for this series independently, regardless of the status of the compressed air.

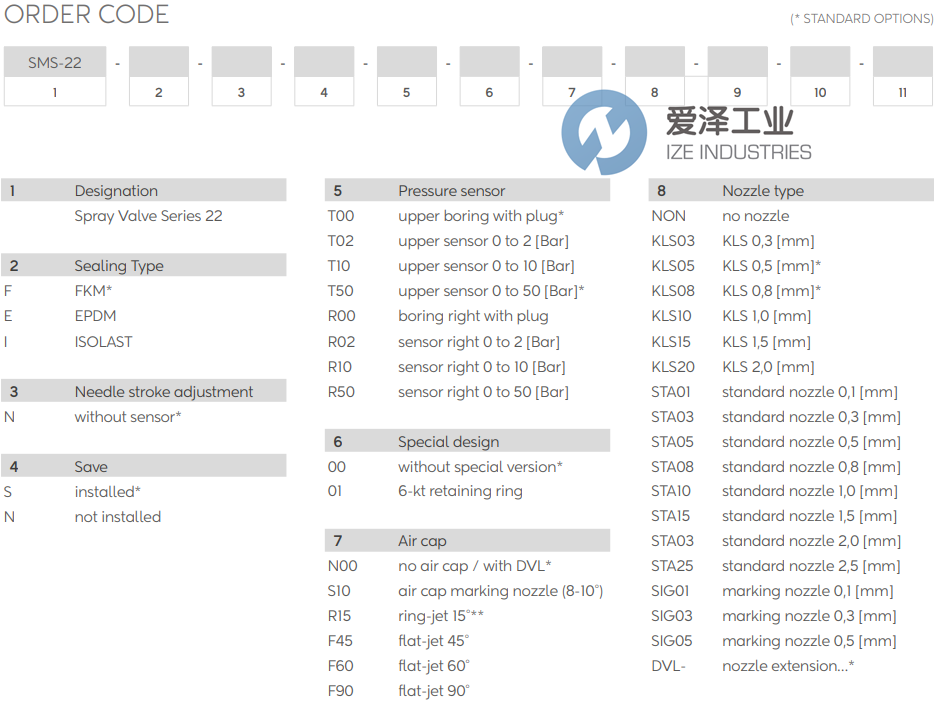

WALTHER喷雾阀SMS-22系列选型
WALTHER喷雾阀SMS-22系列其他常用型号：
WALTHER SMS-22
WALTHER SMS-22-F-N-S-T50-00-N00-DVLxx
WALTHER SMS-22-F-N-S-T00-00-N00-DVLxx
WALTHER SPRAY VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于WALTHER喷雾阀SMS-22的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for WALTHER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
WALTHER喷雾阀SMS-22系列技术参数及选型
