APTECH调压阀AP3800SM MV8 MV8 00描述
AP3800SM MV8 MV8 00 |
AP 38 = Manua |
00 = Normally closed or manual valve |
S = Stainless steel (SS) |
MV8 = 1/2 inch face seal male |
MV8 = 1/2 inch face seal male |
0 |
0 = No purge port |
APTECH调压阀AP系列产品介绍
Series AP 37, 38 & 39
1/2 INCH DIAPHRAGM VALVE
Springless – manual and pneumatic (NC & NO)
• 316L VAR SS secondary remelt construction
• Operating pressure vacuum to 250 psig(17 bar)
• Machined from bar stock
• Multi-port and monoblockavailable
• LOTO AP 3900
• Flow capacity 2.8 Cv
• Surface finish 15 Ra max / 10 Ra avg(10, 7 & 5 Ra max options)
• Indicating switch –AP 3700 and AP 3708 option
系列AP 37、38和39
1/2英寸隔膜阀
无弹簧–手动和气动(NC和NO)
•316L VAR SS二次成型结构
•真空至250 psig(17 bar)的工作压力
•从棒材加工而成
•多端口和单块可用
•LOTO AP 3900
•流量2.8 Cv
•表面粗糙度15 Ra max / 10 Ra avg(10、7和5 Ra max选项)
•指示开关– AP 3700和AP 3708选件

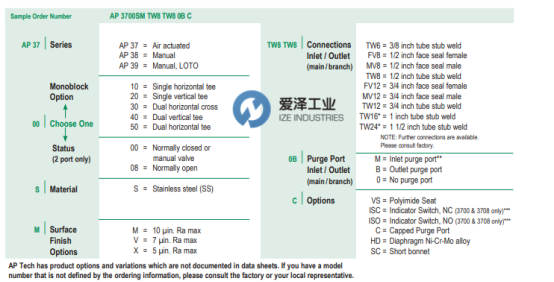

APTECH调压阀AP37/38/39系列选型
APTECH调压阀AP系列其他型号列举:
APTECH AP3800SM MV8 MV8 00
APTECH AP3800S MV8 MV8 00
APTECH AP3700S MV12 FV12 M0
APTECH AP3700SM FV8 FV8 MO
APTECH AP3800S-MV12-MV12-00-D2
APTECH AP3700S-MV12-MV12-00
APTECH AP3800S-FV12-FV12-00-D2
