FLUTEC节流阀KHM系列技术描述
Technical specifications | |
Type of construction | Block type KHB DN 04 - 25 |
Types of connection | Light and heavy threaded connection to DIN 2353 |
Mounting position | No orientation restrictions |
Ambient temperature | -10 °C to +80 °C |
Nominal pressure | up to PN 500 / 7250 PSI |
Operating fluids | Mineral oil to DIN 51524 Part 1 and Part 2 (other fluids on request) |
Temperature of operating fluid | -10 °C to +80 °C |
Type of construction | Shut-off device is a ball |
Weight | See table |
Flow direction | No orientation restrictions |
Spare parts | Seal kits available on request |
Accessories | All ball valves can be supplied with the following options: Actuator Limit controls Lock |
FLUTEC节流阀KHM-50系列产品介绍
技术指标
建筑类型:“KHB DN 04-25套筒类型KHM DN 32-50“
连接类型:“轻型和重型螺纹连接,符合DIN 2353惠特沃思内螺纹符合ISO 228条约SAE”
安装位置:无方向限制
环境温度:-10°C至+80°C
公称压力:最高PN 500/7250 PSI
工作液:符合DIN 51524第1部分和第2部分的矿物油(根据要求提供其他流体)
工作液温度:-10°C至+80°C
建筑类型:截断装置是球型
流向:无方向限制
备件:可根据要求提供密封套件

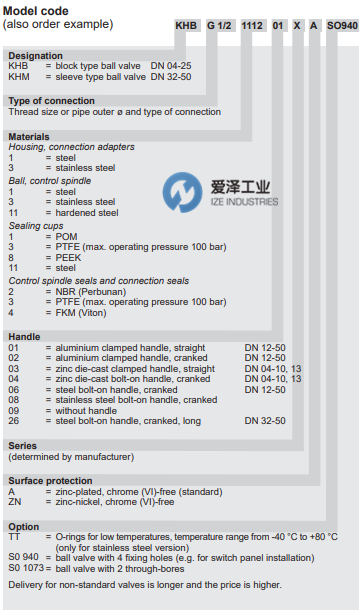

FLUTEC节流阀KHM选型图
FLUTEC节流阀KHM系列其他常用型号:
FLUTEC KHB-06NPT
FLUTEC KHB-10NPT
FLUTEC KHB-16NPT
FLUTEC KHB-20NPT
FLUTEC KHB-25NPT
FLUTEC KHB-32NPT
FLUTEC KHB-40NPT
FLUTEC KHB-50NPT
FLUTEC KHM-50-F6-11141-06X-A
FLUTEC KHM-50-F6-1-1-1-2-1-02
FLUTEC KHM-50SAE 2-1/2-12UN
FLUTEC KHM-50NPT-1114
FLUTEC KHM-25-F6-11141-02X
FLUTEC KHM-50-F6-11141-06X-A
FLUTEC Control valve NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年,定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气,液压以及气动解决方案的合作伙伴,我们利用我们的全球协作团队,为客户提供先进解决方案,市场知识以及相关增值服务来帮助优化客户的工作效率,提高可靠性和安全性,致力于成为工业产品和解决方案的优质渠道。
如果有任何关于FLUTEC节流阀KHM-50-F6-11141-06X-A的疑问,请随时与我们沟通(021-31006702)。我们将尽全力解决您的问题。
If you have any question for FLUTEC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
FLUTEC节流阀KHM系列KHM-50-F6-11141-06X-A规格描述
