REXROTH齿轮泵AZPF-11-004RAB01MB技术规格
Max. flow [l/min] | 16 |
Size (geometric displacement) [cm³/rev] | 4 |
Maximum intermittent pressure [bar] | 210 |
Maximum rotational speed [rpm] | 4000 |
Drive shaft | Straight shaft ISO Dia. 18 mm |
Direction of rotation | Clockwise rotation |
Front cover | Rectangular flange Dia. 80 mm |
Housing material | Aluminum |
Noise level | Standard noise level |
Application | general |
External gear unit | External Gear Unit |
External gear unit function | Pump |
Series | Model F (4 ... 28 cm³/rev) |
Unit version | Bearing diameter 18mm |
Version | phosphatized, pinned |
Line connection | Pipe thread DIN EN ISO 228-1 |
Sealing material | NBR |
Rear cover | Standard (cast iron) |
Weight [kg] | 3.5 |
REXROTH齿轮泵AZPF-11-004RAB01MB产品介绍
外啮合齿轮泵的关键任务是将机械能（扭矩和转速）转换为液压能（流量和压力）。为了避免不必要的高热损失，需要高效率的装置。这些都是通过压力相关的间隙密封和高精度制造技术来实现的。
• 高负载滑动轴承
• 驱动轴符合 ISO 或 SAE 以及客户特定的解决方案
• 使用寿命长
• 基于大批量生产的始终如一的高品质
• 端口连接：法兰或螺纹
The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology.
• Slide bearings for high loads
• Drive shafts according to ISO or SAE and customer specific solutions
• Long service life
• Consistent high quality based on large-volume production
• Port connections: flanged or threaded
REXROTH齿轮泵AZPF系列选型
REXROTH齿轮泵AZPF系列其他常用型号：
REXROTH AZPF-10-004RRR20MB
REXROTH AZPF-10-011RHO30MB
REXROTH AZPF-10-011RHO30PB-S0285
REXROTH AZPF-10-014LCP20MB-S0288
REXROTH AZPF-10-014LHO30PB-S0285
REXROTH AZPF-10-014LHXXXMB-S0041
REXROTH AZPF-10-016LFP20PB-S0003
REXROTH AZPF-10-016LHO30KB
REXROTH AZPF-10-019LFP20PB-S0003
REXROTH AZPF-10-022RSG20PB-S0012
REXROTH AZPF-10-025RHO30PB-S0285
REXROTH AZPF-11-004LCB20MB
REXROTH AZPF-11-004RAB01MB
REXROTH AZPF-11-005LCB20MB
REXROTH PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REXROTH齿轮泵AZPF-11-004RAB01MB的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.

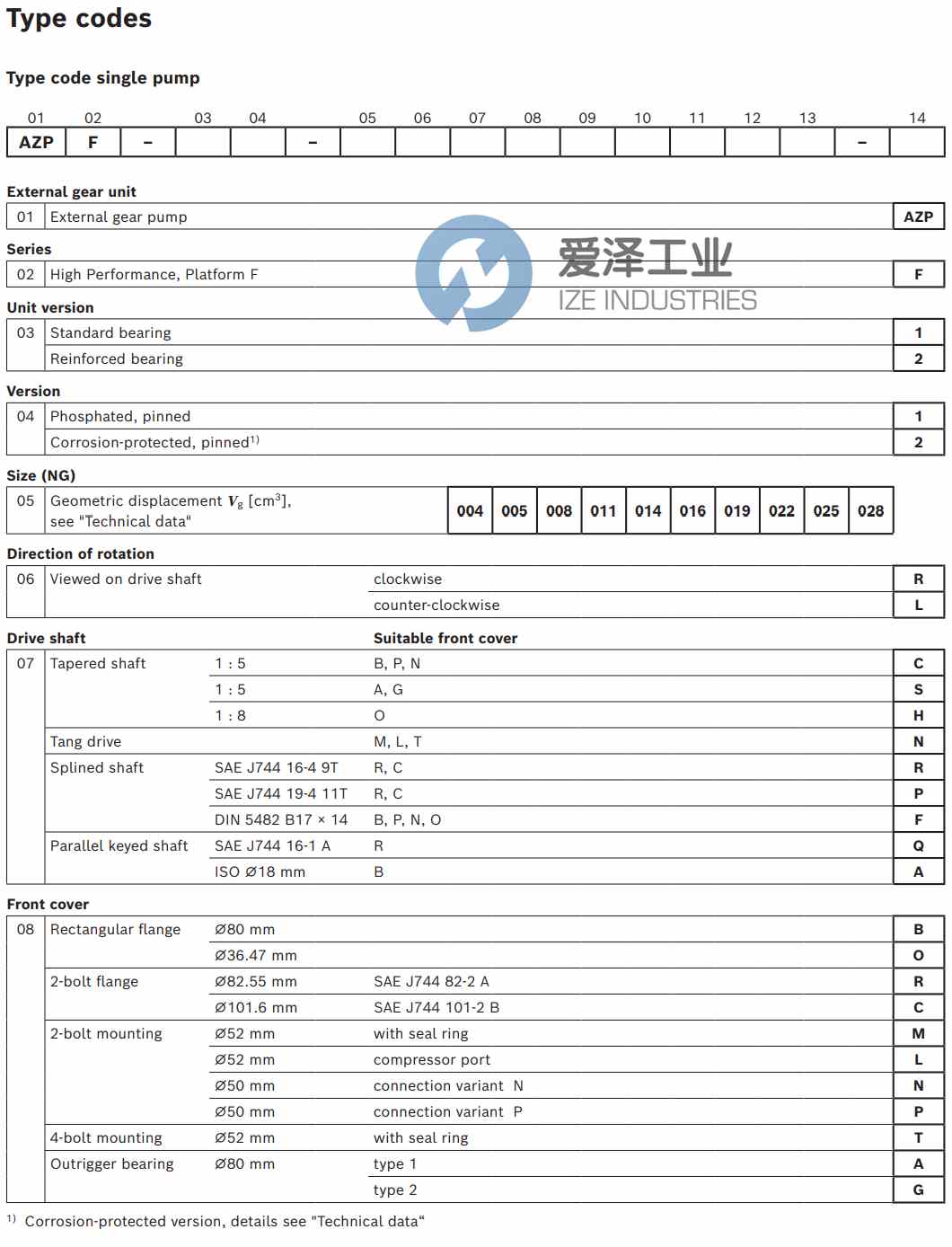

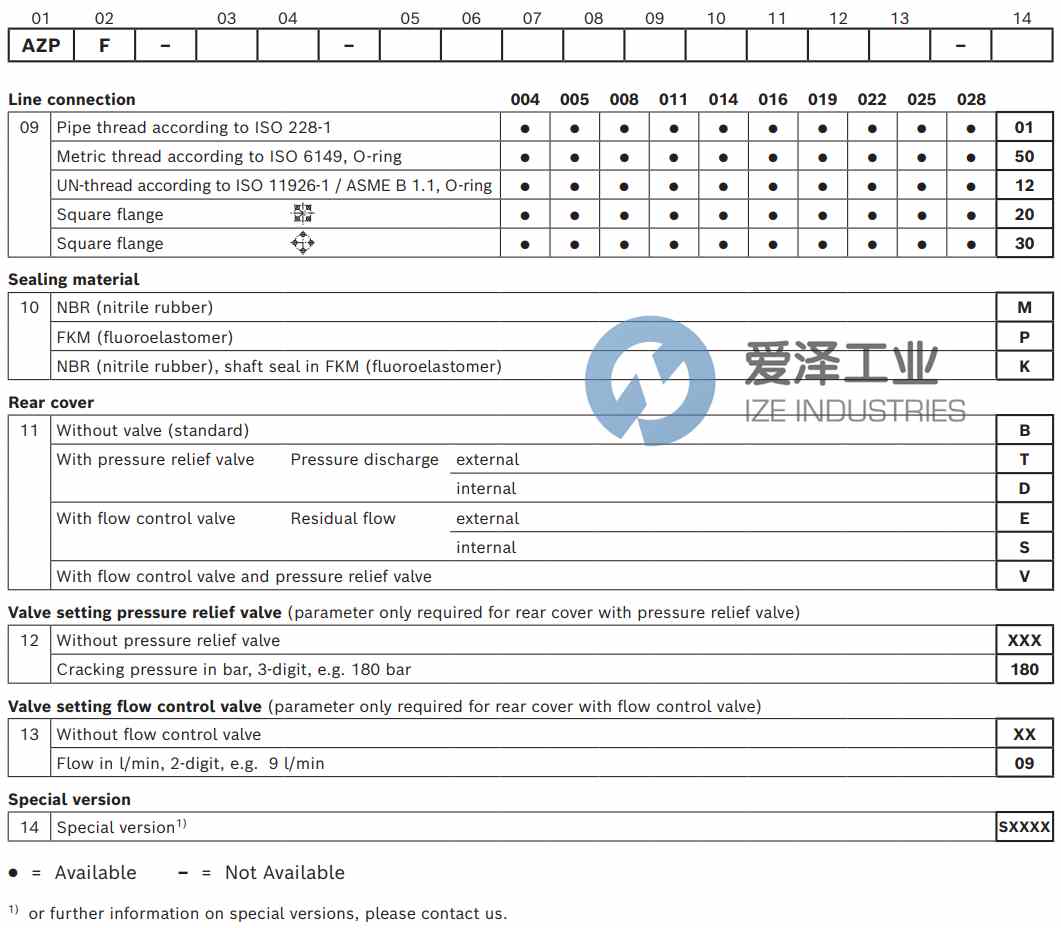

REXROTH齿轮泵AZPF系列AZPF-11-004RAB01MB技术参数及选型
