FLUTEC节流阀DRV系列技术描述
SPECIFICATIONS* | |
Operating pressure: | max. 350 bar |
Nominal flow: | DV- / DRV-06 max. 20 l/min |
Cracking pressure (DRV): | 0.5 bar |
Media operating temperature range: | min. -20 °C to max. +100 °C |
Ambient temperature range: | min. -20 °C to max. +100 °C |
Operating fluid: | Hydraulic oil to DIN 51524 Part 1, 2 and 3 |
Viscosity range: | min. 2.8 mm²/s to max. 800 mm²/s |
Filtration: | Class 21/19/16 according to ISO 4406 or cleaner |
Installation: | no orientation restrictions, preferably horizontal |
Materials: | Valve body: steel |
Weight: | DV-06 = 0.10 kg DRV-06 = 0.10 kg |
FLUTEC节流阀DRV-10产品介绍
The needle valve with reverse flow check DRV-10 is a valve with throttle spindle and turning knob mounted in inline connection housing. When the turning knob is screwed out, the flow rate is increased - depending on viscosity and pressure.A check valve permits a free flow in the other direction.
带逆流止回阀的针阀DRV-10是一种带节流阀主轴和旋钮的阀，该阀安装在串联连接壳体中。拧下旋钮后，流量会增加-取决于粘度和压力。止回阀允许在另一个方向上自由流动。

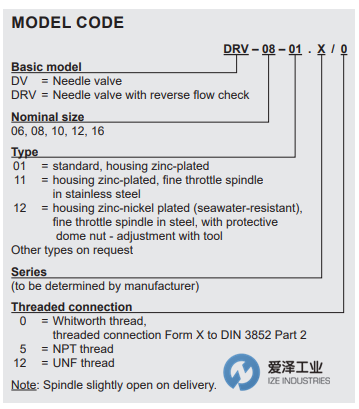

FLUTEC节流阀DRV系列选型参考
FLUTEC节流阀DRV系列其他常用型号：
FLUTEC DV-06-01.X/0 705002
FLUTEC DV-08-01.X/0 705014
FLUTEC DV-10-01.X/0 705026
FLUTEC DV-12-01.X/0 705038
FLUTEC DV-16-01.X/0 705050
FLUTEC DRV-06-01.X/0 705502
FLUTEC DRV-08-01.X/0 705514
FLUTEC DRV-10-01.1/8 705526
FLUTEC DRV-12-01.X/0 705538
FLUTEC DRV-16-01.X/0 705550
FLUTEC Control valve NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于FLUTEC节流阀DRV-10-01.1/8的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for FLUTEC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
FLUTEC节流阀DRV系列DRV-10-01.1/8规格描述
