MICO充液阀06-463-202参数特性
PART | DESCRIPTION | REVISION | ALLOWABLE SYSTEM | ACCUMULATOR | ACCUMULATOR | ACCUMULATOR CHARGE | INTERNAL | REPAIR KIT |
06 463-200 | ACV-DMO11-128-159-10 | H | 50±250 [189.6±17.2.2] | 1850±50 [127.6±3.4] | 2300±50 [158.6±3.4] | 2.7±0.5 [10.2±1.9] | 54 MICRON OR BETTER | 06-400-112 |
06-463-202 | ACV-DMO11-155-190-10 | G | 50±50 [210.3±3.4] | 50±50 [155.1±3.4] | 2750±50 [189.6±3.4] | 2.7±0.5 [10.2±1.9] | 54 MICRON OR BETTER | 06-400-112 |
06-463-204 | ACV-DMO11-114-138-10 | H | 00±400 [179.3±27.6] | 1650±50 [113.8±3.4] | 2000±50 [137.9±3.4] | 2.7±0.5 [10.2±1.9] | 54 MICRON OR BETTER | 06-400-112 |
06 463-206 | ACV-DMO11-86-124-10 | G | 25±475 [174.1±32.8] | 1250±50 [86.2±3.4] | 1800±50 [124.1±3.4] | 2.7±0.5 [10.2±1.9] | 54 MICRON OR BETTER | 06-400-112 |
06-463-208 | ACV-DMO11-117-145-10 | H | 600±400 [179.3±27.6] | 1700±50 [117.2±3.4] | 2100±50 [144.8±3.4] | 2.7±0.5 [10.2±1.9] | 54 MICRON OR BETTER | 06-400-112 |
06 463-210 | ACV-DMO11-103-128-1 | H | 50±450 [175.8±31.0] | 1500±50 [103.4±3.4] | 1850±50 [127.6±3.4] | 2.7±0.5 [10.2±1.9] | 54 MICRON OR BETTER | 06-400-112 |
06 463-212 | ACV-DMO11-86-103-10 | E | 50±650 [162.0±44.8] | 1250±50 [86.2±3.4] | 1500±50 [103.4±3.4] | 2.7±0.5 [10.2±1.9] | 54 MICRON OR BETTER | 06-400-112 |
06 463-214 | ACV-DMO11-64-83-10 | F | 25±775 [153.4±53.4] | 925±50 [63.8±3.4] | 200±50 [82.7±3.4] | 12.7±0.5 [10.2±1.9] | 54 MICRON OR BETTER | 06-400-112 |
06 463 216 | ACV-DMO11-93-114-3 | E | 50±550 [168.9±37.9] | 1350±50 [93.1±3.4] | 1650±50 [113.8±3.4] | .75±0.25 [2.8±.9] | 54 MICRON OR BETTER | 06-400-112 |
06 463 218 | ACV-DMO11-95-124-6 | E | 25±475 [174.1±32.8] | 1375±50 [94.8±3.4] | 1800±50 [124.1±3.4] | 1.7±0.5 [6.4±1.9] | 54 MICRON OR BETTER | 06-400-112 |
06-463-222 | ACV-DMO11-148-179-10 | E | 925±75 [201.7±5.2] | 2150±50 [148.2±3.4] | 2600±50 [179.3±3.4] | 2.7±0.5 [10.2±1.9] | 54 MICRON OR BETTER | 06-400-112 |
06-463-226 | ACV-DMO11-86-103-3 | E | 50±650 [162.0±44.8] | 1250±50 [86.2±3.4] | 1500±50 [103.4±3.4] | .75±0.25 [2.8±.9] | 54 MICRON OR BETTER | 06-400-112 |
06-463-228 | ACV-DMO11-145-179-3 | E | 50±50 [210.3±3.4] | 2100±50 [144.8±3.4] | 2600±50 [179.3±3.4] | .75±0.25 [2.8±.9] | 54 MICRON OR BETTER | 06-400-112 |
06 463-230 | ACV-DMO11-114-138-6 | E | 00±400 [179.3±27.6] | 1650±50 [113.8±3.4] | 2000±50 [137.9±3.4] | 1.7±0.5 [6.4±1.9] | 54 MICRON OR BETTER | 06-400-112 |
06 463-234 | ACV-DMO11-138-166-6 | E | 00±200 [193.1±13.8] | 2000±50 [137.9±3.4] | 2400±50 [165.5±3.4] | 1.7±0.5 [6.4±1.9] | 54 MICRON OR BETTER | 06-400-112 |
06 463-238 | ACV-DMO11-124-152-19 | [ | 00±300 [186.2±20.7] | 1800±50 [124.1±3.4] | 2200±50 [151.7±3.4] | 5.0±1.0 [18.9±3.8] | 54 MICRON OR BETTER | 06-400-112 |
06-463-248 | ACV-DMO11-114-138-6U | B | 50±500 [196.5±34.5] | 1650±50 [113.8±3.4] | 2000±50 [137.9±3.4] | 1.7±0.5 [6.4±1.9] | 100 MICRON-NOMINAL | 06-400-447 |
06-463-252 | ACV-DMO11-45-60-6 | A | 63±938 [142.2±64.7] | 650±50 [45±3.4] | 875±50 [60.3±3.4] | 1.7±0.5 [6.4±1.9] | 100 MICRON-NOMINAL | 06-400-485 |
06-463-254 | ACV-DMO11-55-71-3 | B | 38±862 [147.4±59.4] | 800±38 [55.2±2.6] | 1025±38 [70.7±2.6] | .75±0.25 [2.8±.9] | 100 MICRON-NOMINAL | 06-400-465 |

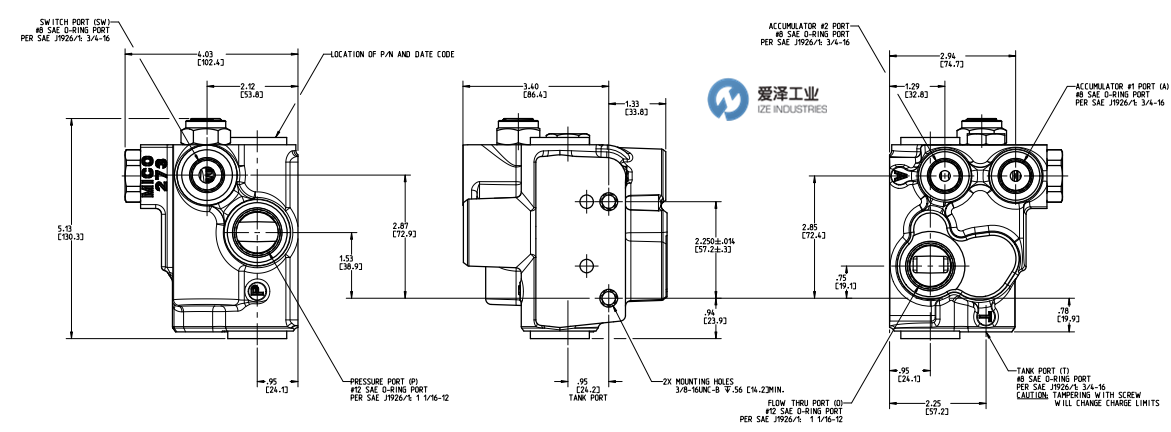

MICO充液阀尺寸图
MICO充液阀其他常见型号：
MICO 06-463-200
MICO 06-463-202
MICO 06-463-204
MICO 06-463-206
MICO 06-463-208
MICO 06-463-210
MICO 06-463-212
MICO 06-463-214
MICO 06-463 216
MICO 06-463 218
MICO 06-463-222
MICO 06-463-226
MICO 06-463-228
MICO 06-463-230
MICO 06-463-234
MICO 06-463-238
MICO 06-463-248
MICO 06-463-252
MICO 06-463-254
MICO PEDAL TANDEM MOD VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于MICO充液阀06-463-202的疑问，请随时与我们电联，（021-3100 6702），我们将尽全力解决您的问题。
If you have any question for MICO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
MICO充液阀06-463-202描述说明
