TRELLEBORG密封RG4300320-T46N技术参数
 | |

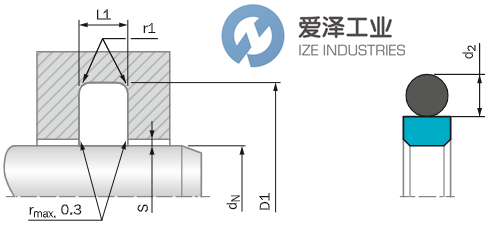

| TSS Part No. | RG4300320 |
| Rod Dia dN f8/h9 | 32.0 |
| Groove Dia D1 H9 | 42.7 |
| Groove Width L1 +0.2 | 4.2 |
| O-Ring Size | 36.09×3.53 |
TRELLEBORG密封RG系列介绍
Turcon™ 滑环是一种高效可靠的低摩擦密封件，尤其适用于高压和低压系统中的杆密封。
双作用 Glyd Ring密封圈结合了Turcon基滑动密封圈和带压紧力的 O 型圈。它具有过盈量 ft，与 O 型圈的挤压作用共同确保即使在低压下也能实现良好的密封效果。在较高的系统压力下，流体对 O 型圈施加压力，使 Glyd Ring 以更大的力压紧密封面。
Turcon" Glyd Ring is a very effective and reliable low friction seal. It is particularly suitable as a rod seal in both high and low pressure systems.
The double acting Glyd Ring° is a combination of a Turcon based slipper seal and an energizing 0-Ring. It has an interference ft which together with the squeeze of the 0-Ring ensures a good sealing effect even at low pressure. At higher system pressures, the O-Ring is energized by the fluid, pushing Glyd Ring° against the sealing face with increased force.
TRELLEBORG密封RG系列其他常用型号：
TRELLEBORG RG4300320-T46N
TRELLEBORG RG4300260
TRELLEBORG RG4500270
TRELLEBORG RG4500280
TRELLEBORG RG4300280
TRELLEBORG RG4500286
TRELLEBORG RG4500290
TRELLEBORG RG4500300
TRELLEBORG RG4300300
TRELLEBORG Graley Circle NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于TRELLEBORG密封RG4300320-T46N的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for TRELLEBORG products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
TRELLEBORG密封RG系列RG4300320-T46N技术参数及介绍
