ALMATEC泵E25系列技术参数
Technical Data | |
PUMP SIZE | E 25 |
Dimensions, mm (in.) | Length: 220 (8.7) |
Nominal port size | 1" |
Air connection | R 1/4 |
Weight, kg (lb) | PE: 15 (33) |
Max. particle size of solids for pumps with ball valves | 6 (0.24) |
Suction Lift Dry, mWC (ft) | 4 (13.1) |
Suction Lift Dry, mWC (ft) | 3 (9.8) |
Suction Lift Wet, mWC (ft) | 9,5 (31.2) |
Max. driving and operating pressure | 7 (100) |
Max. operating temperature, °C (F) | PE: 70 (158) |
Max Capacities | 8 m³/h |
ALMATEC泵E系列介绍
Almatec® E 系列的开发基于经过验证的泵模型的丰富经验。独特壁厚的坚固设计、法兰连接能力、环紧结构和更多的结构特点，满足客户对安全、质量和可靠性的需求。可选设备提供六种泵尺寸，涵盖市场上的大多数应用。脉动阻尼器有旋入式和法兰式两种型号。
The development of the Almatec® E-Series was based on the extensive experiences with the proven pump models. The solid design with distinctive wall thicknesses, the flange connection capability, the ring tightening structure and more construction features are responsible to meet the customer demands of safety, quality and reliability. Six pump sizes available with optional equipments cover most applications in the market. Pulsation dampeners are available as screw-on and flanged models.

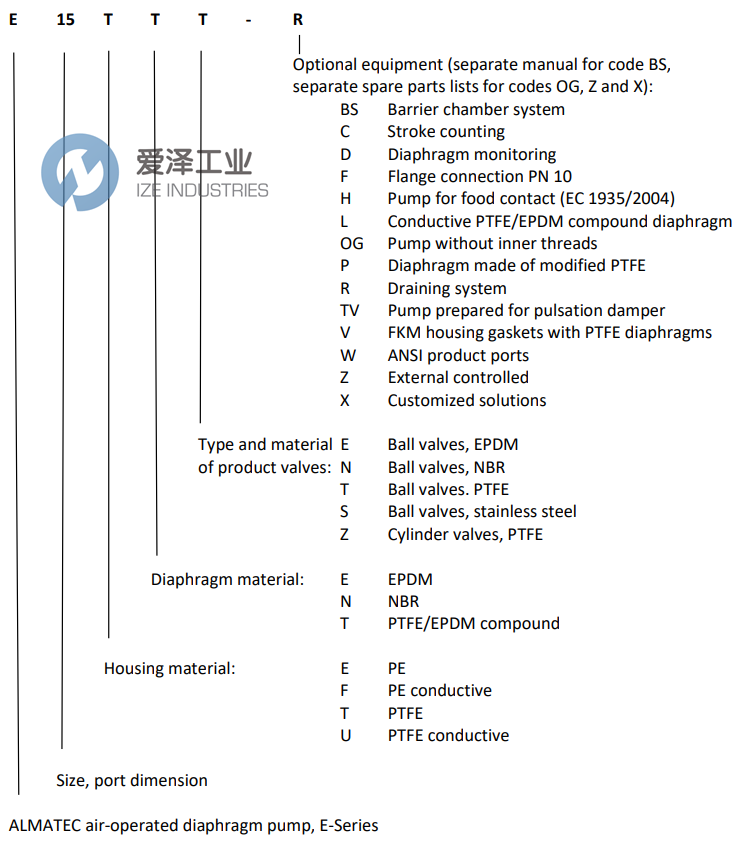

ALMATEC泵E系列选型
ALMATEC泵E系列其他常用型号：
ALMATEC E25ETT-F4 + ET25EFT
ALMATEC E15ETT
ALMATEC E08ETT
ALMATEC E08TTT
ALMATEC E10ETT
ALMATEC E10TTT
ALMATEC E10TTZ
ALMATEC E15ETT
ALMATEC E15TTT
ALMATEC E15TTZ
ALMATEC E15FTZ
ALMATEC E25ETT
ALMATEC E25TTT
ALMATEC E25TTZ
ALMATEC E25FTZ
ALMATEC E40ETT
ALMATEC E15TTT
ALMATEC E40TTZ
ALMATEC E40FTZ
ALMATEC E50ETT
ALMATEC E50TTT
ALMATEC E50TTZ
ALMATEC E50FTZ
ALMATEC PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于ALMATEC泵E25ETT-F4 + ET25EFT的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for ALMATEC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
ALMATEC泵E系列E25ETT-F4 + ET25EFT技术参数及选型
