VIS阀CVS4.S10系列技术参数
Technical data | |
Maximum operating pressure | 350 bar |
Maximum flow | 30 l/min |
Maximum internal leakage | 0,1 cm³/min @ 10 bar |
External component treatment | Zn/Fe - standard (96h) |
O-ring temperature range | -30 ° C to 110 ° C (standard sealing NBR - BUNA - N) |
Oil temperature range | -30 ° C to 110 ° C |
Fluids | Mineral - based or synthetic with lubricating properties |
Viscosities | 7,4 to 420 cSt |
Filtration | 20 / 18 / 15 ISO 4406 (maximum filtration admitted) |
Orientation | No restrictions |
Installation torque | 80 - 85 Nm Hex 27 |
Oil testing condition | ISO VG 46 cSt |
Seal Kit | SK.033 |
Weight | 0,110 Kg |
VIS阀CVS4.S10系列介绍
CVS4.S10是一款旋入式、插装式、直动式、锥阀式止回阀。该阀允许流体从端口1流向端口2：阀芯内设有一个全导向止回阀，该止回阀在弹簧的作用下保持关闭状态，直到端口 1 施加足够的压力才会打开，使流体流向端口 2。流体在相反方向（端口2到端口1）流动时被阻断。
A screw-in, cartridge style, dir ect acting, poppet type check valve. The CVS4.S10 allows flow passage from port 1 to 2: the cartridge has a fully guided check which is spring-biased closed until sufficient pressure is applied at port 1 to open to 2. The flow is blocked in the opposite direction (2 to 1).

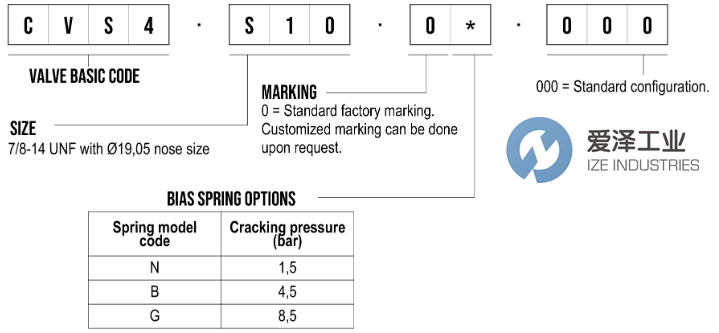

VIS阀CVS4.S10系列选型
VIS阀CVS4.S10系列其他常用型号：
VIS CVS4.S10.0N.000
VIS CVS4.S10.0B.000
VIS CVS4.S10.0G.000
VIS valve NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于VIS阀CVS4.S10.0N.000的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for VIS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
VIS阀CVS4.S10.0N.000技术参数及介绍
