PARKER止回阀D04B2-1.0N技术参数
Technical Specifications | |
Division | Hydraulic Valve Systems Division Europe |
Maximum Flow Rate | 42 GAL/MIN, 160 L/MIN |
Cracking Pressure | 15 PSI, 1 BAR |
Seal Material | Nitrile |
Flow Rate | 24 gal/min @ 100 Psi (7 bar) Nominal, 90 L/min @ 100 Psi (7 bar) Nominal |
Maximum Operating Pressure | 6000 psi, 420 bar |
Maximum Inlet Pressure Rating | 6000 psi, 420 bar |
Leak Rate | 3 drops/min @ 6000 Psi (420 bar) |
Function | Standard Check |
Actuation Type | Pressure Sensing |
Flow Direction | 2-1 Checked, 1-2 Free Flow |
For Fluid Type | Mineral-based Hydraulic Fluids, Synthetic Hydraulic Fluids |
Maximum Kinematic Viscosity | 45-2000 SSU (6 to 420 cSt) |
Filter Efficiency Rating | ISO 4406 18/16/13, SAE Class 4 |
Valve Material | Steel (all parts), Hardened Steel (all operating parts) |
Cavity Size | C10-2 |
Installation Torque | 37 lb-ft, 50 Nm |
Operating Temperature | -30 to 250 °F, -34 to 121 °C |
Weight | 0.18 lb, 0.08 kg |
PARKER止回阀D04B2系列介绍
区域性-球型止回阀设计简单，用于阻止单向流动，允许反向流动。
REGIONAL-Parker ball type check valves are simple in their design and are used to block flow in one direction, and allow flow in the opposite direction.

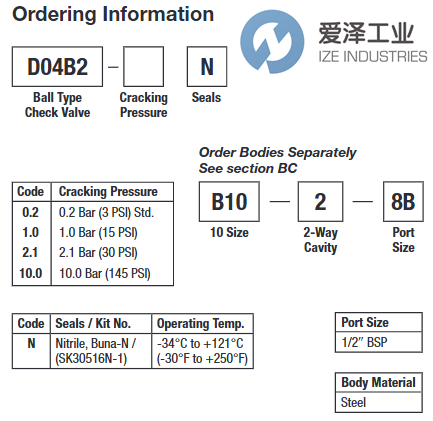

PARKER止回阀D04B2系列选型
PARKER止回阀D04B2系列其他常用型号：
PARKER D04B2-1.0N
PARKER D04B2-0.0N
PARKER D04B2-0.0V
PARKER D04B2-0.2N
PARKER D04B2-0.2V
PARKER D04B2-1.0V
PARKER D04B2-2.1N
PARKER D04B2-2.1V
PARKER D04B2-3.4N
PARKER D04B2-3.4V
PARKER D04B2-6.9N
PARKER D04B2-6.9V
PARKER D04B2-10.0N
PARKER D04B2-10.0V
PARKER D04B2-15.0N
PARKER D04B2-15.0V
PARKER Check valve NEW + ORIGINAL+ ONE YEAR WARRANTY
