WATER HYDRAULICS泵P3系列技术参数
Specification | |
Displacement (cc/rev) | Max: 3.0 |
Max. RPM | Unboosted: 1800 |
Construction Materials | A.I.S.I 316, Polymer & Martensitic Stainless steel |
Max. Input Power (kW) | 1.75 |
Max. Water Flow (l/min) | 6 |
Max. Cont. Pressure (Bar) | 160 |
Weight (kg) | 1.9 |
Temperature (°C) | Max: 50 |
WATER HYDRAULICS泵P3系列介绍
Janus P3 轴向柱塞泵专为使用自来水而设计，排量为 3.0cc/rev 和 3.0cc/rev。
该装置的最大工作压力为 160 bar (2320 PSI)，提供 2 端口非增压和 3 端口增压设计，从泵轴上看，旋转方向均为顺时针或逆时针。
为避免任何污染，Janus 轴向柱塞泵完全无油，使用水作为冷却剂/润滑剂。
The Janus P3 axial piston pump is designed for operation on tap water and are available in displacements of 3.0cc/rev & 3.0cc/rev.
The maximum operating pressure of the unit is 160 bar (2320 PSI) and is available are 2 port un-boosted & 3 port boosted design both with a direction of rotation clockwise or anticlockwise viewed on the pump shaft.
To avoid any contamination the Janus axial piston pumps are completely oil free and operate with water as their coolant / lubricant.

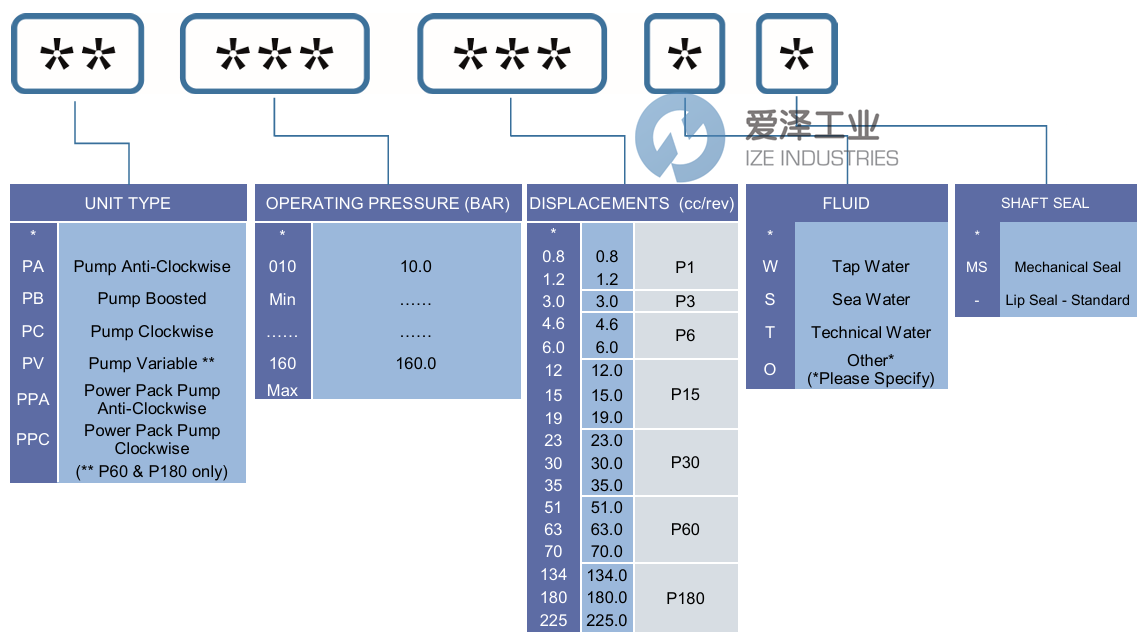

WATER HYDRAULICS泵P3系列选型
WATER HYDRAULICS泵P3系列其他常用型号：
WATER HYDRAULICS PB160-6.0W
WATER HYDRAULICS PB160-4.6W
WATER HYDRAULICS PB160-12W
WATER HYDRAULICS PB160-15W
WATER HYDRAULICS PB160-19W
WATER HYDRAULICS PB160-23W
WATER HYDRAULICS PB160-30W
WATER HYDRAULICS PB160-35W
WATER HYDRAULICS PPB160-3.0W
