KAWASAKI阀PRBP10P-10/350-EB技术参数
Code | PRBP10P-10/350-EB |
Type | [PRBP] Pressure reducing valve of solenoid proportional balanced piston type |
Nominal dimension | [10] 10 |
Connection method | [P] Gasket connection type |
Series number | [10] 10 |
Highest adjustment pressure | [350] 34.3MPa (350kgf/cm2) |
Types with/without check valve | [No symbol] Types without the valve |
Solenoid ratings | [E] 14.2Ω×0.8A |
Electric connection symbol | [B] DIN connector |
Type of hydraulic oil | [No symbol] Mineral based hydraulic oil |
KAWASAKI阀PRBP系列介绍
电磁比例平衡活塞型减压阀由电磁比例先导溢流阀和平衡活塞型减压阀组成，可根据输入电流以给定速率远程控制液压系统压力。此外，放大器安装型由电压输入控制。
特点
• 阀门的先导压力由一次侧提供，即使一次和二次压力差或流量增加，阀门也可以使用先导流量，并提供稳定的性能。（公称尺寸 20、30）
• 电磁比例先导溢流阀采用特殊阻尼机构，即使一次和二次压力急剧变化，也能获得出色的稳定性。
• 最大压力限制装置提供针对异常压力的安全措施。
• 在电气系统初始调整或故障期间，可以使用先导溢流阀上的手动压力调节螺纹进行手动操作。
Pressure reducing valve of solenoid proportional balanced piston type consists of the solenoid proportional pilot relief valve and balanced piston type pressure reducing valve, and allows hydraulic system pressure to be remotely controlled at a given rate in proportion to the input current. In addition, amplifier mounted types are controlled by voltage input.
Features
• The pilot pressure for the valve is supplied from the primary side, which allows the valve to use pilot flow even when the primary and secondary pressure difference or flow rate increases and provides stable performance. (Nominal dimension 20, 30)
• The special damping mechanism is used in the solenoid proportional pilot relief valve, even when the primary and secondary pressure drastically changes, superior stability is obtained.
• The maximum pressure limiting device provides safety measures against abnormal pressure.
• During the initial adjustment or malfunction in the electrical system, manual operation can be done with the manual pressure adjustment thread on the pilot relief valve.

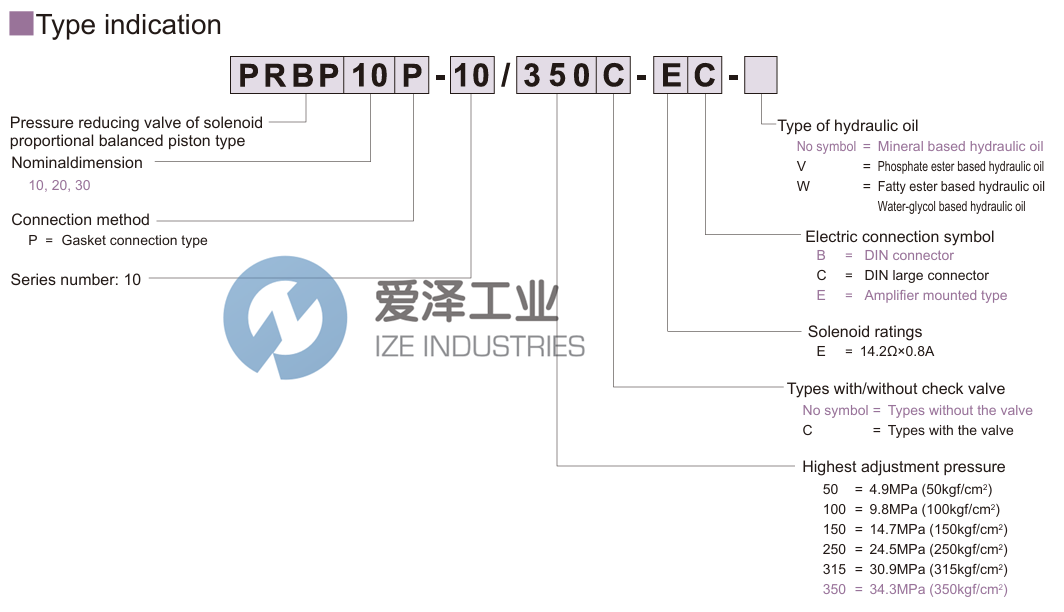

KAWASAKI阀PRBP系列选型
KAWASAKI阀PRBP系列其他常用型号：
KAWASAKI PRBP20P-10/350C-EC
KAWASAKI PRBP10P-10/350-EB
KAWASAKI PRBP10P-10/350C-EC
