VICKERS减压阀XG2V-8CW-10技术参数
Code | XG2V-8CW-10 |
Model | (F3-) X(C)G2V- * * *-1* |
Fluid compatibility | Blank = Anti-wear hydraulic oil (class L-HM), |
Integral check valve (free reverse flow) | Omit if not required |
Mounting surface, ISO 5781 | 8 = Size 08 |
Reduced pressure adjustment control range | C = 5 to 140 bar (44 to 2000 psi) |
Type of manual adjustment | W = Screw/locknut |
Design number | 10 |
VICKERS减压阀X(C)G2V系列介绍
当液压系统的某些部分需要在低于一般系统的压力下运行时，使用减压阀通常比添加更多泵部分更方便。
这些两级减压阀允许从入口到出口端口的全流量，直到达到减压设置，此时出口流量被关闭。减压设置可在先导级手动调节。有五个减压调节范围可供选择。
高阀门响应确保降低的出口压力不受入口压力峰值的影响。主级中的小止回阀将出口端口连接到先导级，可防止出口端口压力过度累积（例如由执行器回流引起）。
特点和优点
• 有五个减压调节范围可供选择，与机器要求紧密匹配。
• 主级部件的筒式设计具有出色的重复性和稳定性能。
• 内部先导系统的设计使并联使用多个阀门时泵流量损失最小。
• 集成止回阀选项可实现自由反向流动。
• 国际安装表面。
• 高功率/尺寸比（比许多传统设计高出一倍以上），安装成本低，空间要求低。
Where sections of an hydraulic system are required to operate at a pressure below that of the general system, it is frequently more convenient to use a pressure reducing valve than to add further pump sections.
These two-stage pressure reducing valves allow full flow from inlet to outlet port until the reduced pressure setting is reached, whereupon the outlet flow is closed off. Reduced pressure setting is manually adjustable at the pilot stage. Five ranges of reduced pressure adjustment are available.
High valve response ensures that the reduced outlet pressure is unaffected by inlet pressure peaks. Excessive build-up of outlet port pressure (e.g. caused by flow back from an actuator) is prevented by the small check in the main-stage which connects the outlet port to the pilot stage.
Features and Benefits
• Close matching to machine requirements with choice of five adjustment ranges of reduced pressure.
• Excellent repeatability and stable performance results from cartridge design of main-stage parts.
• Minimal pump flow losses when using several valves in parallel, results from design of internal pilot system.
• Free reverse flow from integral check valve option.
• International mounting surfaces.
• Low installed cost and space requirement from high power/size ratios (more than double that of many conventional designs).

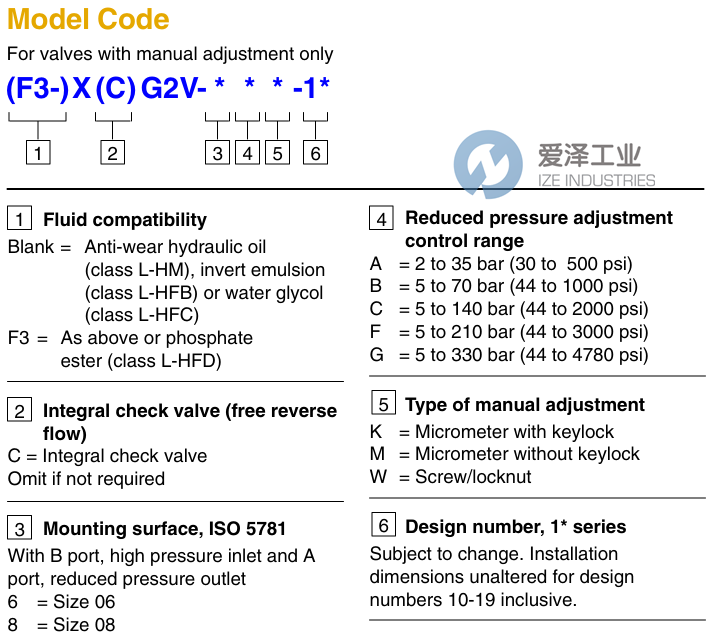

VICKERS减压阀X(C)G2V系列选型
VICKERS减压阀X(C)G2V系列其他常用型号：
VICKERS XG2V-6AW-10
VICKERS XG2V-6BK-10
VICKERS XG2V-6CW-10
VICKERS XG2V-6FW-10
VICKERS XG2V-6GW-10
VICKERS XG2V-8CW-10
VICKERS XG2V-8FW-10
VICKERS XG2V-8GW-10
VICKERS F3-XG2V-6CW-10
