REXROTH溢流阀KBPSP8AA/HCG24K4V R901047007技术参数
Product attributes | |
Product family classification | Proportional pressure relief valve, direct operated, increasing characteristic curve |
Product family type | KBPS |
Operating pressure, max. [bar] | 420 |
Ports number | 2 |
Max. flow [l/min] | 2 |
Normal position | Normally closed |
Spool Poppet | Poppet type |
Direct - Pilot | Direct acting |
Type of connection | Screw-in cartridge valve |
Cavity | Sun T-8A |
Nominal flow [l/min] | 2 |
Type of actuation | Electro-proportional |
Coil | GP37 |
Coil integrated | Integrated coil |
Supply voltage | 24 V DC |
Electrical connector | DIN EN 175301-803 |
Sealing material | FKM |
Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HEES,HEPR,HEPG,HFDU,HFDR,HFAS |
Product type | KBPS |
Product family | Relief |
Weight [kg] | 0.44 |
REXROTH溢流阀KBPSP8AA/HCG24K4V R901047007介绍
比例泄压阀，直接操作，特性曲线增加
• 最大工作压力 420 bar (6000 psi)
• 最大流量 2 l/min (0.5 gpm)
• 腔体 SUN T-8A
• 旋入式插装阀
Proportional pressure relief valve, direct operated, increasing characteristic curve
• Maximum operating pressure 420 bar (6000 psi)
• Maximum flow 2 l/min (0,5 gpm)
• Cavity SUN T-8A
• Screw-in cartridge valve

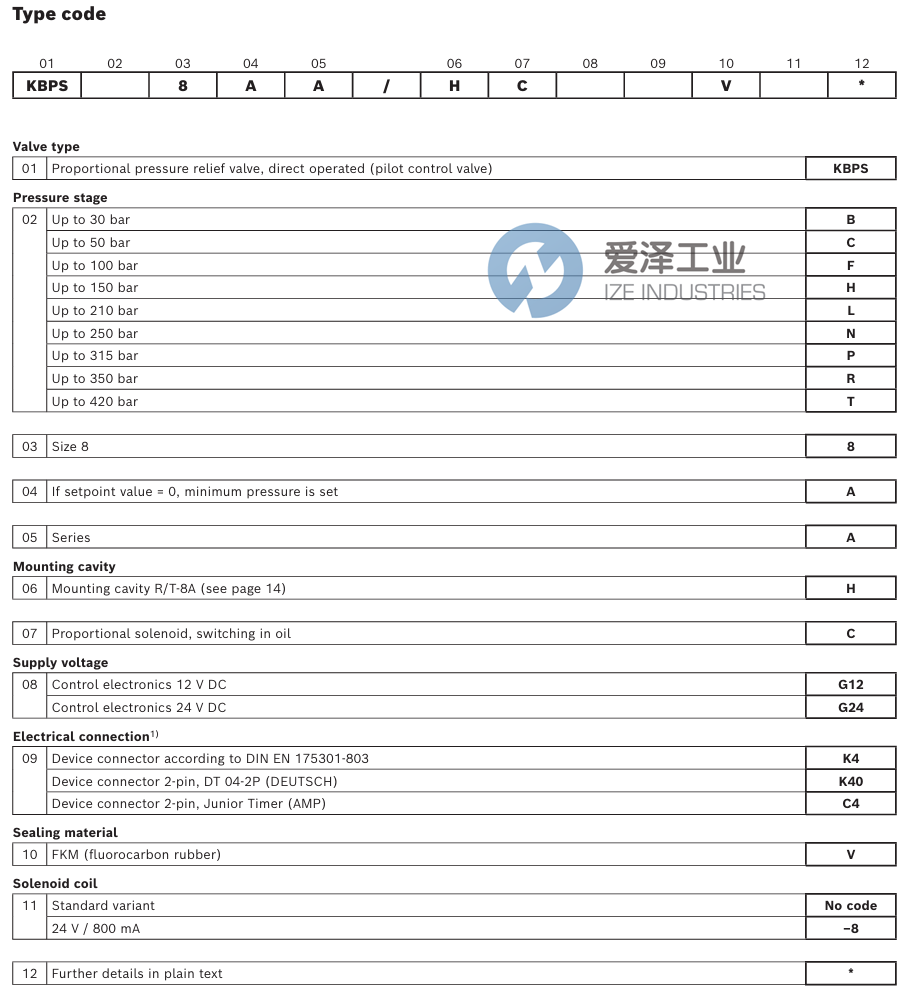

REXROTH溢流阀KBPS.8A系列选型
REXROTH溢流阀KBPS.8A系列其他常用型号：
REXROTH KBPSC8AA/HCG24K4V R901049804
REXROTH KBPSF8AA/HCG24K4V R901049817
REXROTH KBPSL8AA/HCG24K4V R901027408
REXROTH KBPSN8AA/HCG24K4V R901049877
REXROTH KBPSP8AA/HCG24K4V R901047007
REXROTH KBPSR8AA/HCG24K4V R901049860
REXROTH KBPST8AA/HCG24K40V R901045871
REXROTH KBPSL8AA/HCG24K4V-8 R901053398
REXROTH KBPSP8AA/HCG24C4V-8 R901132980
REXROTH KBPSR8AA/HCG24C4V-8 R901128882
REXROTH VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REXROTH溢流阀KBPSP8AA/HCG24K4V R901047007的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
REXROTH溢流阀KBPS.8A系列KBPSP8AA/HCG24K4V R901047007技术参数及选型
