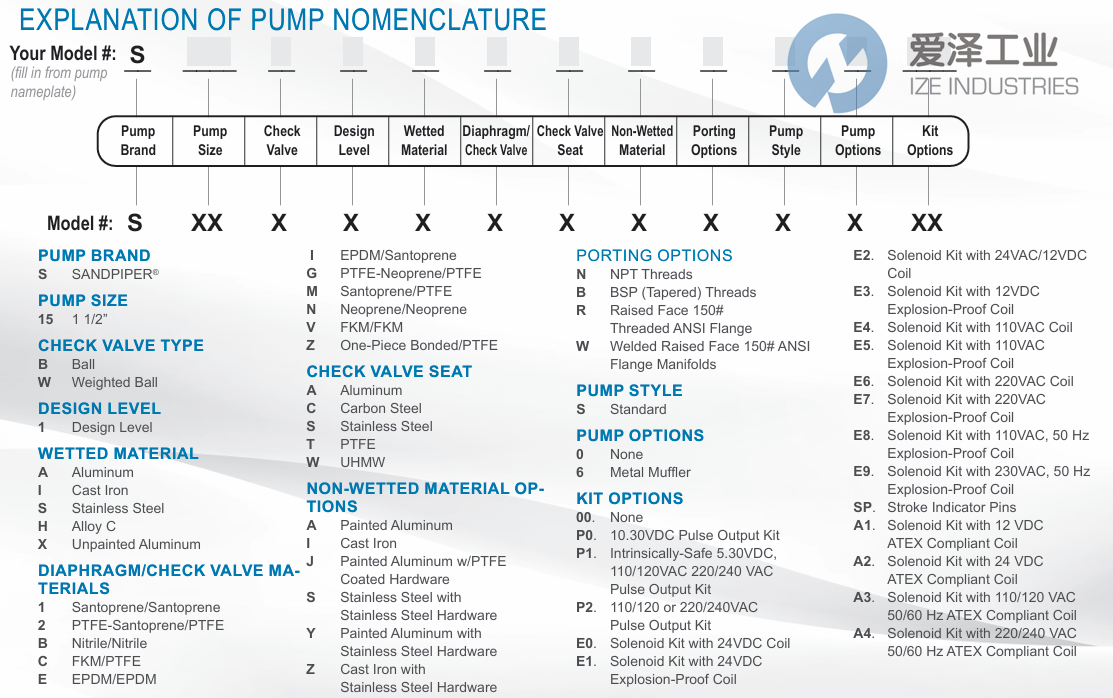

SANDPIPER隔膜泵S15B1INWABS000技术参数
Code | S15B1INWABS000 |
Pump Brand | [S] SANDPIPER® |
Pump Size | [15] 1 1/2” |
Check Valve Type | [B] Ball |
Design Level | [1] Design Level |
Wetted Material | [I] Cast Iron |
Diaphragm/Check Valve Materials | [N] Neoprene/Neoprene |
Check Valve Seat | [W] UHMW |
Non-Wetted Material Options | [A] Painted Aluminum |
Porting Options | [B] BSP (Tapered) Threads |
Pump Style | [S] Standard |
Pump Options | [0] None |
Kit Options | [00.] None |
SANDPIPER隔膜泵S15系列介绍
SANDPIPER 1½" S15 金属 AODD 泵提供超过 22 英尺（6.7 米）的卓越吸力。这款多功能移动泵专为出色的操作而设计，非常适合 OEM 应用。
它能够处理磨蚀性流体和悬浮固体，在可靠性至关重要的严苛化学应用中表现出色。此外，这款 AODD 泵具有与 SANDPIPER 的 S20 和 S30 泵的空气侧互换性，便于库存管理并降低库存成本。
S15 的耐用螺栓结构优于夹箍结构泵，可提供出色的无泄漏性能。结构材料选项包括：铝、铸铁和不锈钢，弹性体 TPE（热塑性弹性体）和 PTFE 选项（隔膜和止回阀）。
S15 功能
可维护性：空气分配系统 (ADS) 是任何 AODD 泵中最常维修的部件之一。SANDPIPER 的 ESADS+ 功能允许访问完整的 ADS无需停止泵的运行。维修或清洁只需五分钟。
简单性：SANDPIPER 的原创 ADS 完全可互换、可维修且可在线维护。其他制造商经常更改 ADS 设计，从而导致互换性、库存过时和拥有成本增加等问题。
The SANDPIPER 1½" S15 Metallic AODD Pump provides superior suction lift of greater than 22 ft (6.7 m). Designed for outstanding operation, this versatile and mobile pump is perfect for OEM applications.
Equipped to handle abrasive fluids and suspended solids, it gives exceptional performance in harsh chemical applications where reliability is critical. Additionally, this AODD pump offers air-side interchangeability with SANDPIPER’s S20 and S30 pumps for ease of inventory management and reduced inventory costs.
The durable, bolted construction of the S15 is superior to the clamp-band construction pump, providing excellent leak-free performance. Material of construction options include: aluminum, cast iron and stainless steel with elastomer TPE (thermoplastic elastomers) and PTFE options in diaphragms and check valves.
S15 Features
Serviceability: The air distribution system (ADS) is one of the most frequently serviced parts of any AODD pump. Only SANDPIPER's ESADS+ feature allows access to the complete ADS without removing the pump from service. Repair or clean in five minutes.
Simplicity: SANDPIPER’S original ADS is fully interchangeable, repairable and inline-serviceable. Other manufacturers frequently change ADS designs, creating issues with interchangeability, obsolete inventory and increased cost of ownership.
SANDPIPER隔膜泵S15系列选型
SANDPIPER隔膜泵S15系列其他常用型号：
SANDPIPER S15B1ABWANS000
SANDPIPER S15B1ACTANS000
SANDPIPER S15B1AEWANS000
SANDPIPER S15B1AGTANS000
SANDPIPER S15B1ANWANS000
SANDPIPER S15B1A1WANS000
SANDPIPER S15B1AVWANS000
SANDPIPER S15B1IBWANS000
SANDPIPER S15B1ICTANS000
SANDPIPER S15B1IEWANS000
SANDPIPER S15B1IGTANS000
SANDPIPER S15B1INWANS000
SANDPIPER S15B1I1WANS000
SANDPIPER S15B1IVWANS000
SANDPIPER S15B1SBWANS000
SANDPIPER S15B1SCTANS000
SANDPIPER S15B1SGTANS000
SANDPIPER S15B1SNWANS000
SANDPIPER S15B1S1WANS000
SANDPIPER S15B1SVWANS000
SANDPIPER S15B1A1WABS000
SANDPIPER S15B1A2TABS000
SANDPIPER S15B1INWABS000
