KRACHT齿轮泵KF4...80系列技术参数
Characteristics | |
Nominal sizes 4…80 cm3 | Vg = 4 / 5 / 6 / 8 /10 /12 /16 / 20 / 25 / 32 / 40 / 50 / 63 / 80 |
Fitting position | arbitrary |
Direction of rotation | right or left |
Fixing type | flange (DIN ISO 3019) |
Pipe connection | KF 4…25 Whitworth pipe thread, SAE flange |
Drive shaft end | ISO R 775 short-cylindrical |
Operating pressure pressure side Pn | 25 bar (higher pressures on request) |
Speed | 200 … 3 000 1/min |
Viscosity | 12 … 20 000 mm2/s |
Ambient temperature | Vu = - 20 °C … 60 °C (-- 4 °F…140 °F) |
Materials | |
Housing and cover | EN-GJL-250 (GG 25) |
Gear | Steel 1.7139 |
Plain bearing bushes | DU (multi-layer friction-type bearings P 10, DP 4) |
Bearings free of nonferrous metal on request | |
Shaft end seals | NBR, FKM, PTFE, EPDM (other sealing materials on request. E.g. HNBR / CR) |
O-ring | NBR, FKM, PTFE, EPDM (other sealing materials on request. E.g. HNBR / CR) |
KRACHT齿轮泵KF系列介绍
传输齿轮泵 KF 齿轮泵用于泵送各种流体。
传输齿轮泵 KF 齿轮泵的特点是其种类繁多,可根据模块化原理按需组装,并允许后续升级。
该泵还适用于润滑性较低的介质。
标准壳体部分由灰铸铁制成。
齿轮组由高强度表面硬化钢制成,经过硬化处理并安装在特殊的多化合物滑动轴承衬套中。
标准驱动轴由旋转轴唇形密封件密封。
所有尺寸的泵均采用斜齿系统。该特性与特殊的齿轮几何形状相结合,可实现极低的噪音水平和减小的压力脉动。
Transfer gear pumps KF gear pumps are used for pumping a wide variety of fluids.
Transfer gear pumps KF gear pumps are distinguished especially by their wide range of variants which are assembled as required on the modular principle and also permit subsequent upgrade.
The pumps are also suitable for media with low lubricating properties.
The standard housing sections are of grey cast iron.
The gear units are manufactured from high-strength case-hardening steel, hardened and mounted in special multi-compound plain bearing bushes.
The standard drive shaft is sealed by rotary shaft lip-type seal.
All pump sizes incorporate helical tooth system. This feature, combined with special gear geometry, results in extremely low noise levels and reduced pressure pulsation.

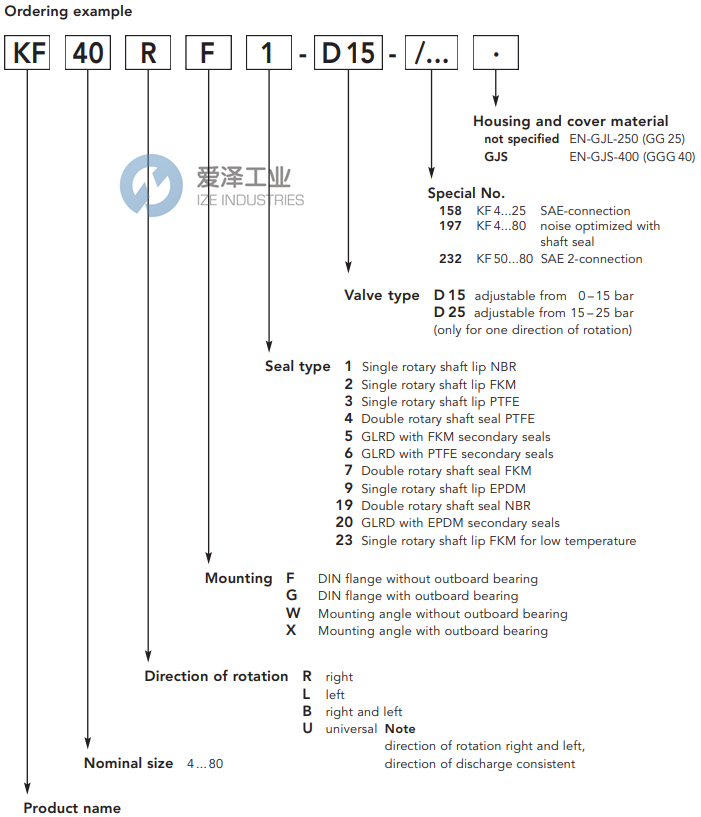

KRACHT齿轮泵KF系列选型
KRACHT齿轮泵KF系列其他常用型号:
KRACHT KF8 LG1
KRACHT KF8 RF2-D15
KRACHT KF8 RF1-D15
KRACHT KF8 RF7-D15
KRACHT KF40RF1-D15
KRACHT KF6 RF1-D15
KRACHT KF20 RF1-D15
KRACHT KF 8 RF 2/158
KRACHT PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年,定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气,液压以及气动解决方案的合作伙伴,我们利用我们的全球协作团队,为客户提供先进解决方案,市场知识以及相关增值服务来帮助优化客户的工作效率,提高可靠性和安全性,致力于成为工业产品和解决方案的优质渠道。
如果有任何关于KRACHT齿轮泵KF8LG1的疑问,请随时与我们沟通(021-31006702)。我们将尽全力解决您的问题。
If you have any question for KRACHT products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
KRACHT齿轮泵KF系列KF8LG1技术参数及选型
