RASTELLI RACCORDI止回阀TN106-42L技术参数
| |

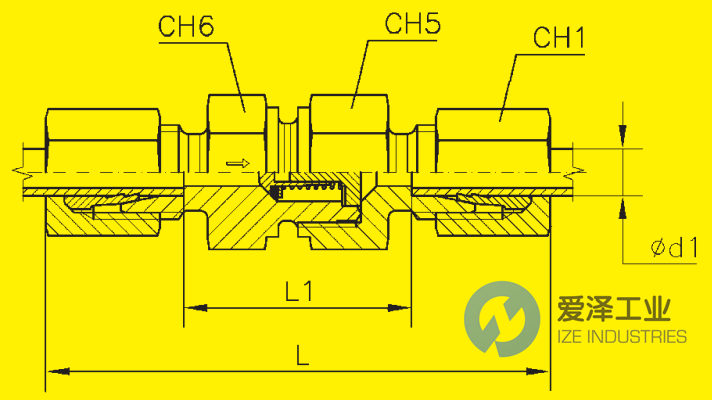

Series | L |
Ø Tube d1 | 42 |
PN | 100 |
L | 119 |
L1 | 74 |
CH1 | 60 |
CH5 | 70 |
CH6 | 65 |
Part. No. | TN 106 - 42 L |
Weight kg.×100 P. | 200,0 |
RASTELLI RACCORDI止回阀TN106系列介绍
止回阀
整体尺寸为封闭式。
开启压力 1 BAR ± 20%
Non-return valves
Overall sizes are with closed fitting.
Opening pressure 1 BAR ± 20%
RASTELLI RACCORDI止回阀TN106系列其他常用型号：
RASTELLI RACCORDI TN106-6L
RASTELLI RACCORDI TN106-8L
RASTELLI RACCORDI TN106-10L
RASTELLI RACCORDI TN106-12L
RASTELLI RACCORDI TN106-15L
RASTELLI RACCORDI TN106-18L
RASTELLI RACCORDI TN106-22L
RASTELLI RACCORDI TN106-28L
RASTELLI RACCORDI TN106-35L
RASTELLI RACCORDI TN106-42L
RASTELLI RACCORDI TN106-6S
RASTELLI RACCORDI TN106-8S
RASTELLI RACCORDI TN106-10S
RASTELLI RACCORDI TN106-12S
RASTELLI RACCORDI TN106-14S
RASTELLI RACCORDI TN106-16S
RASTELLI RACCORDI TN106-20S
RASTELLI RACCORDI TN106-25S
RASTELLI RACCORDI TN106-30S
RASTELLI RACCORDI TN106-38S
