BERARMA叶片泵01-PHP3-100-FHRMA-PCS002技术参数
Code | 01-PHP3-100-FHRMA-PCS002 |
Series Name | [01 PHP] |
Size; Displacement cm³/r | [3 – 100] 3; 100 |
Flange; Ports | [F] ISO 3019-2 4 holes; Gas BSP / SAE 3000 |
Pressure setting (bar) | [H] 30 ÷ 250 |
Rotation direction | [R] Right (cw) view from shaft end |
Seals | [M] NBR |
Option | [A] Thru drive shaft for combined pumps |
Pressure control | [PCS002] Single stage of pressure with remote control |
BERARMA叶片泵PHP系列介绍
PHP 泵是高压可变排量叶片泵，配备液压调节装置，允许用户根据电路要求即时调整流量。可变排量叶片泵是容积式泵，因此它们提供的最大流量相当于其转速下的排量。工作压力是由系统内流体遇到的压力负荷引起的。当出口压力（在系统上）等于泵设定压力时，流量将调整为系统所需的值。当达到此值时，泵将流量降低至零，使压力几乎保持恒定。在零流量条件下，泵仅输送油以补偿任何可能的泄漏和引导。
PHP pumps are high pressure variable displacement vane pumps equipped with hydraulic pressure regulating device that allow user to instantly adjust the flow rate accordingly to circuit requirements. Variable displacement vane pumps are volumetric type so they deliver a maximum flow rate equivalent to its displacement for their speed of rotation. Operating pressure is due to pressure loads encountered by the fluid within the system. When the outlet pressure (on the system) equals the pump setting pressure, the flow rate is adjusted to the values required by the system. When this value is achieved, pump reduces its flow rate to zero, keeping the pressure almost constant. In zero flow conditions, pump delivers oil only to compensate any possible drain and piloting.

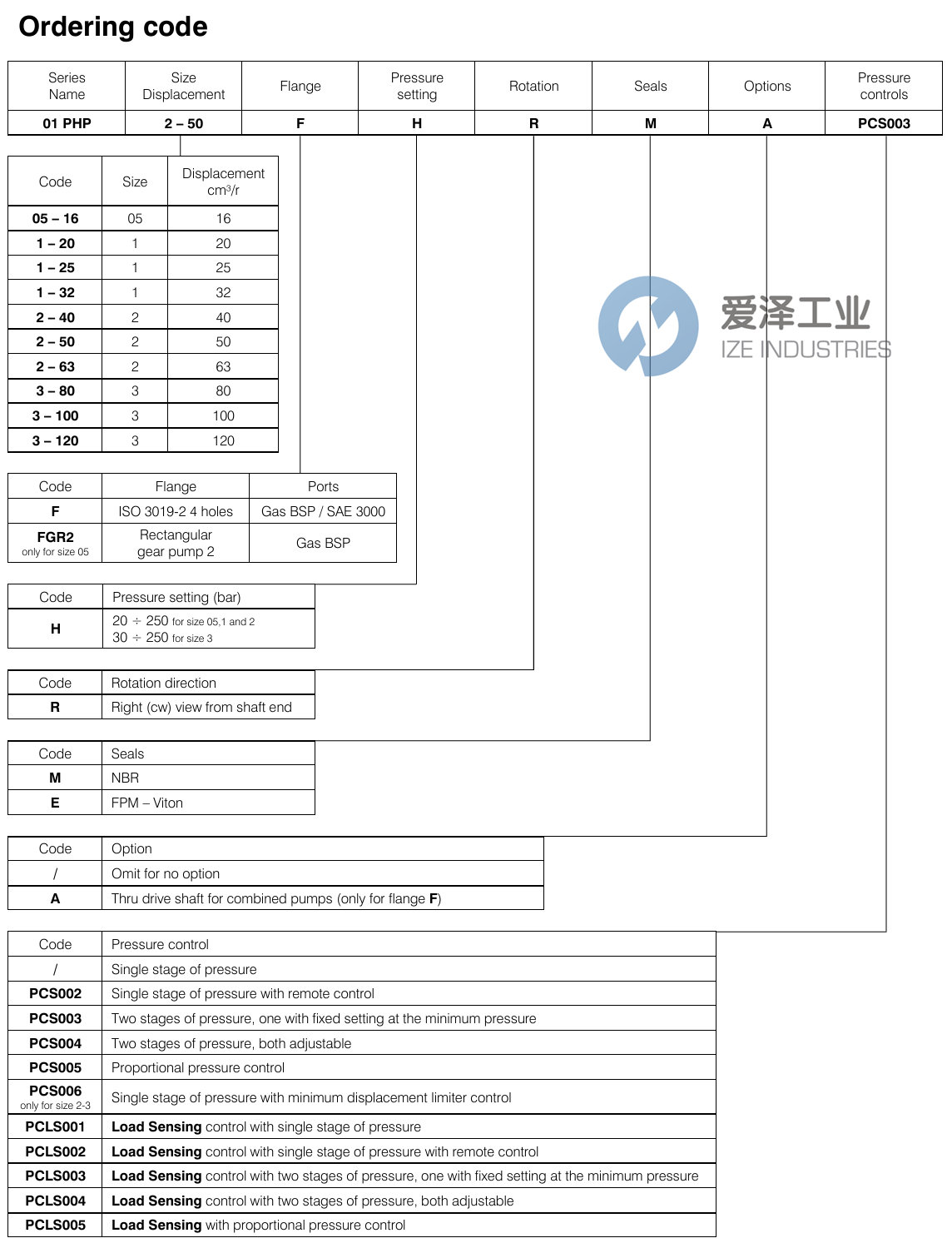

BERARMA叶片泵PHP系列选型
BERARMA叶片泵PHP系列其他常用型号：
BERARMA 01-PHP 05-16 FGR2 H R M
BERARMA 01-PHP 05-16 FGR2 H R M PCLS001
BERARMA 01-PHP 05-16 FGR2 H R M PCLS002
BERARMA 01-PHP 05-16 FGR2 H R M PCLS003
BERARMA 01-PHP 05-16 FGR2 H R M PCLS004
BERARMA 01-PHP 05-16 FGR2 H R M PCLS005
BERARMA 01-PHP 05-16 FGR2 H R M PCS002
BERARMA 01-PHP 05-16 FGR2 H R M PCS003
BERARMA 01-PHP 05-16 FGR2 H R M PCS004
BERARMA 01-PHP 05-16 FGR2 H R M PCS005
BERARMA 01-PHP 1-25 FHRM PCS003
BERARMA 01-PHP 3-100 FHRM PCLS004
BERARMA 01-PHP 3-100 FHRMA PCLS003
BERARMA 01-PHP 3-100 FHRMA PCS003
BERARMA 01-PHP 3-120 FHRM PCS003
BERARMA 01-PHP3-100-FHRMA-PCS002
