REXROTH叶片泵PV7-1X/16-30RE01MC0-08 R900533582技术参数
Product attributes | |
Displacement type | variable |
Size [cm³] | 30 |
Product family | PV7...C/D/N/W |
Operating pressure, max. [bar] | 80 |
Max. flow [l/min] | 54 |
Through-drive | with |
Direction of rotation | clockwise rotation |
Shaft end | Cylindrical Ø 25 mm with fitting key, ISO 3019-2 |
Mounting flange | 4-hole mounting flange 100B4HW according to ISO 3019-2 |
Hydraulic fluid | HLP,HLPD,HVLP,HVLPD |
Seals | NBR |
Weight [kg] | 15.51 |
REXROTH叶片泵PV7系列介绍
工业用途高可靠性。低噪音和脉动水平。低滞后性和高重复精度带来精确的控制行为。可与其他力士乐泵灵活组合。
• 旋转叶片变量泵
• 适用于开式回路工业应用
• 带 NBR 密封件
• 铸铁外壳
High reliability in industrial use. Low noise and pulsation level. Precise control behavior thanks to low hysteresis with high repetition accuracy. Can be combined flexibly with other Rexroth pumps.
• Rotary vane variable displacement pump
• For industrial applications in open circuit
• With NBR seals
• Cast iron housing

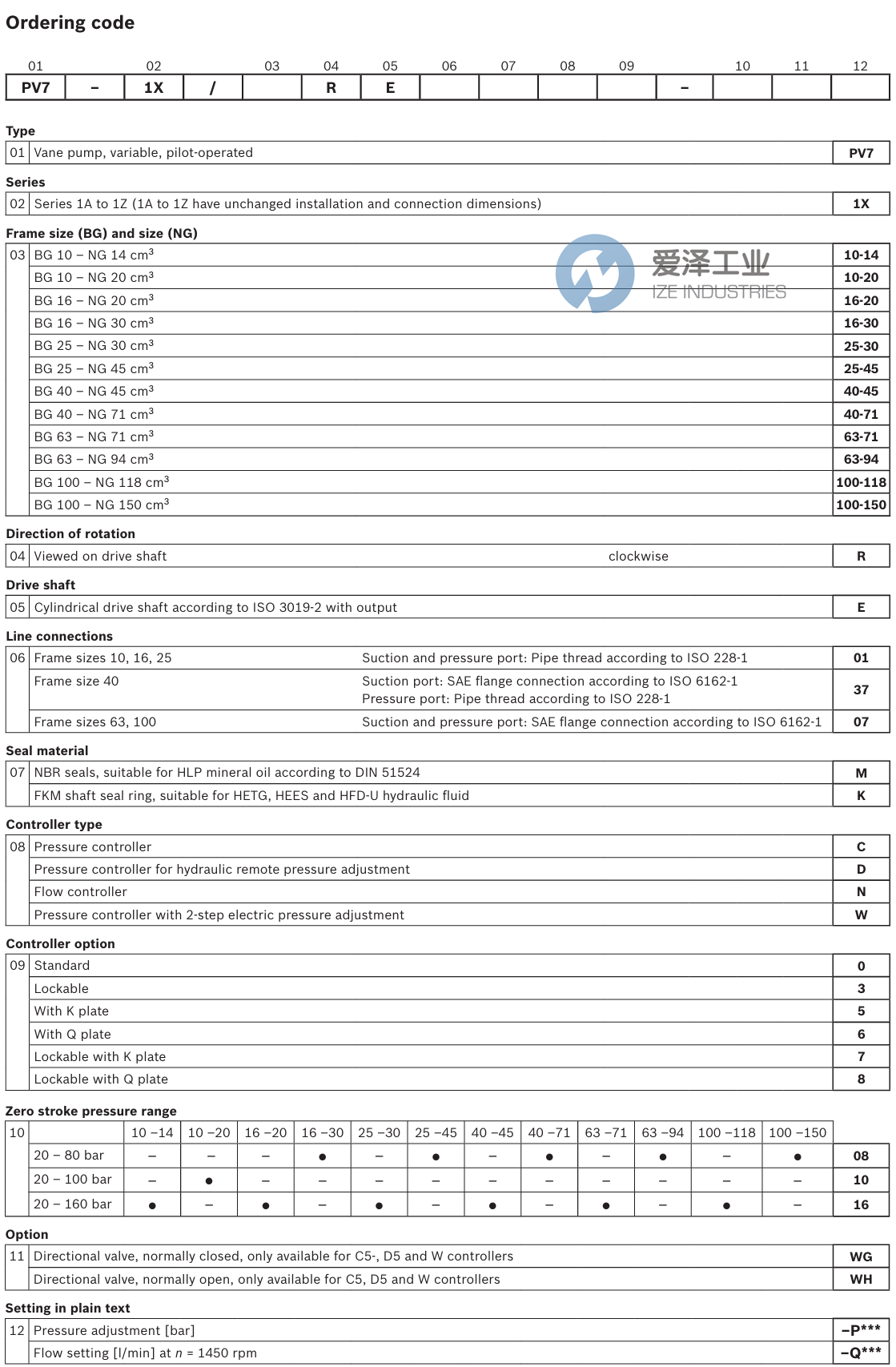

REXROTH叶片泵PV7系列选型
REXROTH叶片泵PV7系列其他常用型号：
REXROTH PV7-1X/10-14RE01MC0-16 R900580381
REXROTH PV7-1X/10-20RE01MC0-10 R900534143
REXROTH PV7-1X/16-20RE01MC0-16 R900580382
REXROTH PV7-1X/16-30RE01MC0-08 R900533582
REXROTH PV7-1X/25-30RE01MC0-16 R900580383
REXROTH PV7-1X/25-45RE01MC0-08 R900534508
REXROTH PV7-1X/40-45RE37MC0-16 R900580384
REXROTH PV7-1X/40-71RE37MC0-08 R900535588
REXROTH PV7-1X/63-71RE07MC0-16 R900506808
REXROTH PV7-1X/63-94RE07MC0-08 R900560659
REXROTH PV7-1X/100-118RE07MC0-16 R900506809
REXROTH PV7-1X/100-150RE07MC0-08 R900561846
REXROTH PV7-1X/10-14RE01MD0-16 R900504653
REXROTH PV7-1X/10-20RE01MD0-10 R900906584
REXROTH PV7-1X/16-20RE01MD0-16 R900509274
REXROTH PV7-1X/16-30RE01MD0-08 R900560658
REXROTH PV7-1X/25-30RE01MD0-16 R900509506
REXROTH PV7-1X/25-45RE01MD0-08 R900568833
REXROTH PV7-1X/40-45RE37MD0-16 R900593330
REXROTH PV7-1X/40-71RE37MD0-08 R900539886
REXROTH PV7-1X/63-71RE07MD0-16 R900519094
REXROTH PV7-1X/63-94RE07MD0-08 R900574560
REXROTH PV7-1X/100-118RE07MD0-16 R900532770
REXROTH PV7-1X/100-150RE07MD0-08 R900915470
REXROTH PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY
