CASAPPA马达DIVISORE-PLD20/4/CS-GE/8-GD/8-GD/8-GD/8-GD/8技术参数
Series | PLD 20 - Polaris 20 |
Number of sections | 4 |
Standard side inlet section | CS - Left inlet section |
Inlet port dimensions | GE - GAS STRAIGHT THREAD PORTS (BSPP) |
Displacement | 8 - 0.50 in3/rev (8,3 cm3/rev) |
Outlet port dimensions | GD - GAS STRAIGHT THREAD PORTS (BSPP) |
CASAPPA马达POLARIS系列介绍
现代机械的电路越来越复杂，通常需要单独和独立运动的组合。 POLARIS 10 和 POLARIS 20 分流器提供高技术、低成本的动力传输，并解决液压流量分配的应用问题。 根据简化液压回路设计的策略，分流器内置有溢流阀，用于限制压力并防止气蚀。
这些组件可以巧妙地优化液压回路并降低安装成本。 POLARIS 分流器是两个或多个具有公共内部连接轴的部分分配器。 这根据截面位移保持通过每个截面的流量之间的恒定比率。 旋转分流器的理论工作实际上不会耗散能量，如果一个部分的出口压力低于输入压力，该部分将作为电动机运行并从流体中获取能量。 该能量不会被浪费，而是通过公共轴转移到作为泵运行的其他部分，因此需要出口压力大于入口压力。 在工况下，整体效率取决于单段效率之和。
因此，这些产品可用作流量均衡器、分流器和增压器。
Modern machinery with increasingly complex circuits often needs combinations of separate and independent movements. POLARIS 10 and POLARIS 20 flow dividers provide technically advanced, low cost power transmission and solve application problems wherever hydraulic flow has divided. In line with our policy of simplifying the design of hydraulic circuits, our flow dividers have relief valves built into limit pressure and prevent cavitation.
These components permit hydraulic circuits to be cleverly optimised and reduce installation costs. The POLARIS flow dividers are two or more section dividers with a common internal connecting shaft. This maintains a constant ratio between the flows through each section in accordance with section displacement. Theoretical working of rotary flow dividers do not dissipate energy in fact if the outlet pressure of one section drops below input pressure, that section operates as a motor and takes energy from the fluid. This energy is not wasted but transferred by the common shaft to the other sections which operate as pumps and therefore need outlet pressure to be greater than inlet pressure. In working conditions, overall efficiencies depend on the sum of the single sections efficiency.
These products can therefore be used as flow equalizers, flow dividers and pressure intensifiers.

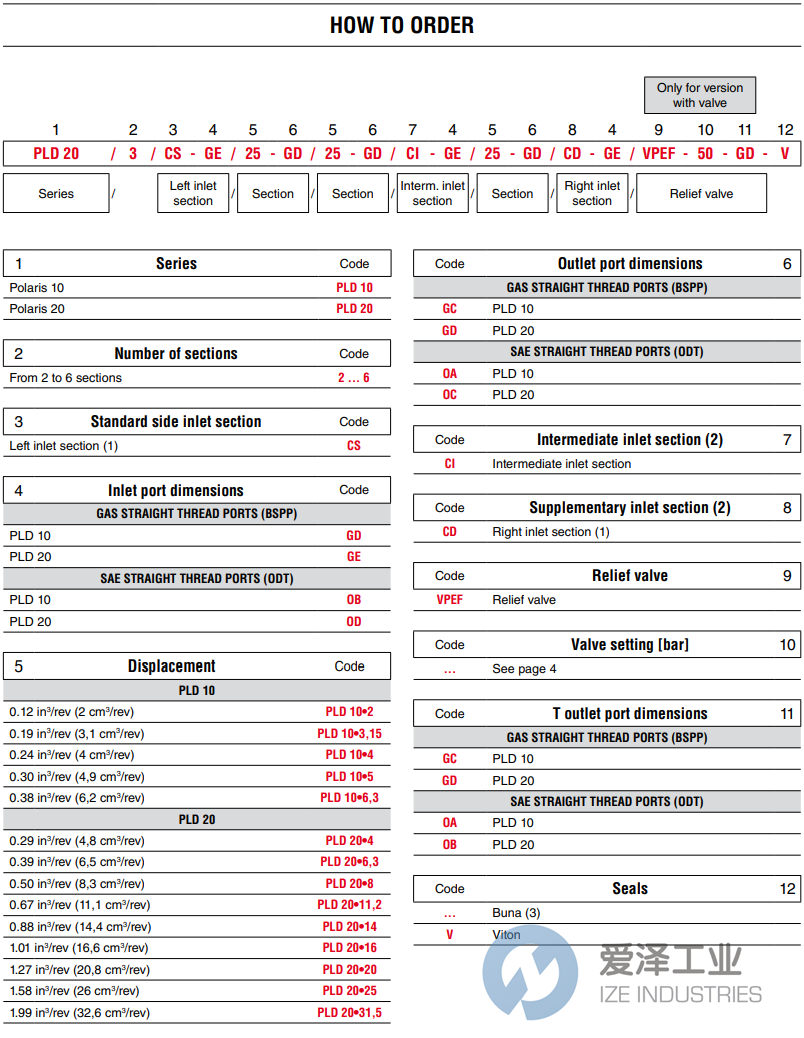

CASAPPA马达POLARIS系列选型
CASAPPA马达POLARIS系列其他常用型号：
CASAPPA PLD20/4/CS-GE/8-GD/8-GD/20.8-GD
CASAPPA PLD20/4/16-GD/16-GD/CI-GE
CASAPPA PLD20/4/CS-GE/8-GD/8-GD/8-GD/8-GD-VPEF(160)-GD
CASAPPA PLD20/4/CS-GE/16-GD/16-GD/16-GD/16-GD
CASAPPA PLD20/4/CS-GE/11,2-GD
CASAPPA PLD20/4/CS-GE/8-GD/8-GD/8-GD/8-GD/8
CASAPPA motor NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于CASAPPA马达DIVISORE-PLD20/4/CS-GE/8-GD/8-GD/8-GD/8-GD/8的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for CASAPPA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
CASAPPA马达POLARIS系列DIVISORE-PLD20/4/CS-GE/8-GD/8-GD/8-GD/8-GD/8技术参数及选型
