HYDRECO齿轮泵QX5系列技术参数
Speed Range | All models 450 - 3000 rev/min |
Temperature | |
Minimum at start-up | -40oC (-40oF) |
Maximum continuous | +80oC (+176oF) |
Maximum intermittent | +100oC (+212oF) |
Viscosity | |
Maximum at start-up | 2000 mm2/sec (9,000 SSU) |
Maximum continuous | 250 mm2/sec (1150 SSU) |
Minimum continuous | 10 mm2/sec (60 SSU) |
Optimum | 15-25 mm2/sec (78-124 SSU) |
Fluid Cleanliness | |
To ISO4406 solid contaminant | |
Start-up period | 21/17 |
Maximum in service | 19/15 |
Optimum | 16/11 |
Maximum water | 0.001 |
Fluid Velocity | |
Maximum in INLET line | 2.5 m/sec (8 ft/sec) |
Recommended in INLET line | 1.5 m/sec (5 ft/sec) |
Shaft Loads Maximum axial load | 250 N (56 lb) |
Maximum radial load | 500 N (112 lb) |
Rotation | Clockwise or Anti-clockwise viewed from shaft end (not reversible). |
HYDRECO齿轮泵QX5系列介绍
QX 泵使用斜齿轮，旨在减少泵产生并传输到液压系统的流体噪声。 这会减少机器发出的空气噪音。
QX 泵效率高，设计用于在下列参数范围内运行时提供高性能水平和较长的使用寿命。
QX pumps use helical gears and are designed to reduce the amount of fluid borne noise generated by the pump and hence transmitted into the hydraulic system. This results in a reduction in the amount of airborne noise emitted from the machine.
QX pumps are highly efficient and are designed to provide high performance levels and long life when operated within the parameters shown below.

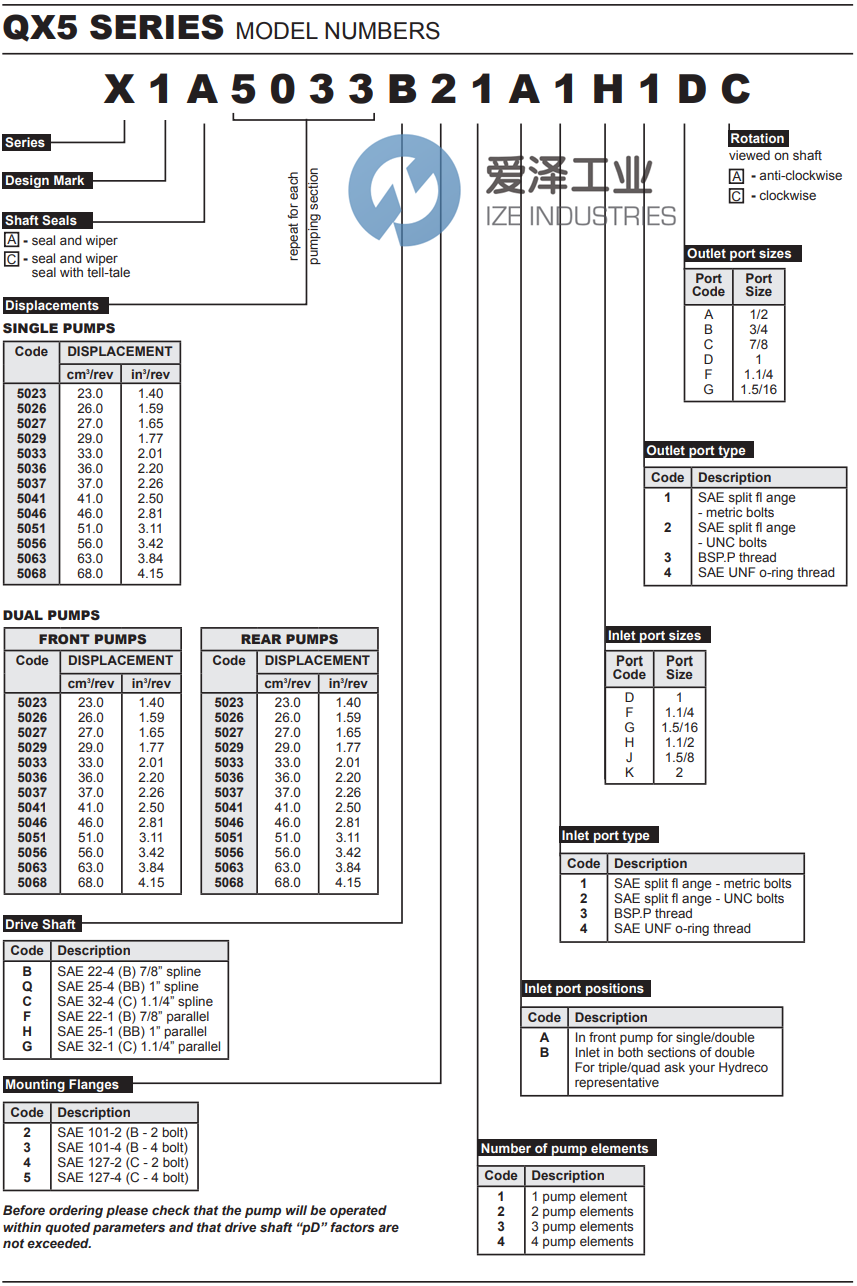

HYDRECO齿轮泵QX5系列选型
HYDRECO齿轮泵QX5系列其他常用型号：
HYDRECO X1A5-5-5-5-134411-C
HYDRECO X1A5-5-5-184903-2C
HYDRECO X1A5-5-5-184903-2C
HYDRECO X1A5-5-5-5/134403/1C
HYDRECO X1A5-5-5-5/134403/1C
HYDRECO X1A5-5-5-5-124013-1C
HYDRECO X1A5-5-5-5-124013-1C
HYDRECO X1A5-5-5/114728/1C
HYDRECO X1A5-5-5-147321-1C
HYDRECO X1A5-5-5-147321-1C
HYDRECO X1A5-5-5-155108-3C
HYDRECO X1A5-5-5-155108-3C
HYDRECO X1A5-5-5-114730-1C
HYDRECO X1A5-5-5-5-134427-2C
HYDRECO X1A5-5-147329-1C
HYDRECO GEAR PUMPS NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于HYDRECO齿轮泵X1A5-5-147329-1C的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for HYDRECO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
HYDRECO齿轮泵QX5系列X1A5-5-147329-1C技术参数及选型
