CIRCLE止回阀2349R-3PP技术参数
| |
Specifications | |
Series | 2300 |
Body Material | 17-4 PH Stainless Steel |
O-Ring Material | Buna N |
Connection Size | 3/8 in |
End Connections (Inlet/Outlet) | Female / Female NPT |
Operating Pressure | 0 to 10000 psig 0 to 690 bar |
Cracking Pressure | 2 to 5 psig |
Available Cracking Pressures | 0.5 to 30 psi |
Operating Temperature | -65 to 250 ºF |
Flow Coefficient (Cv) | 1.78 |
Spring Material | 302 Stainless Steel |
Proof Pressure | 15000 psig 1034 bar |
Rated Burst Pressure | 25000 psig 1724 bar |

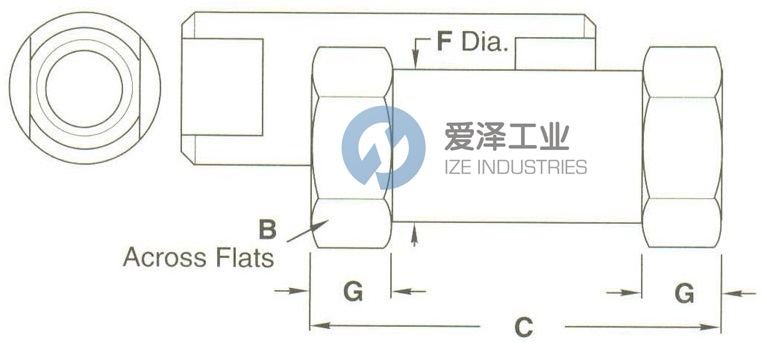

B Hex. | 1 in |
Dim. C | 2.35 in |
Dim. G | 0.50 in |
Dim. F | 0.95 in |
Optional Body Material | 17-4 PH Stainless Stee |
Optional End Connections | B - Female Tube, AND10050 |
CIRCLE止回阀2349R-3PP产品介绍
特征
专为高压服务而设计
弹性 O 形圈
单件设计
亮点
不易受到污染损坏
正常背压下零泄漏
自动补偿磨损
缓冲、静音关闭
Features
Designed for high pressure service
Resilient O-ring
Single piece design
Benefits
Less susceptible to contamination damage
Zero leakage at normal back pressure
Automatic compensation for wear
Cushioned, quiet closing

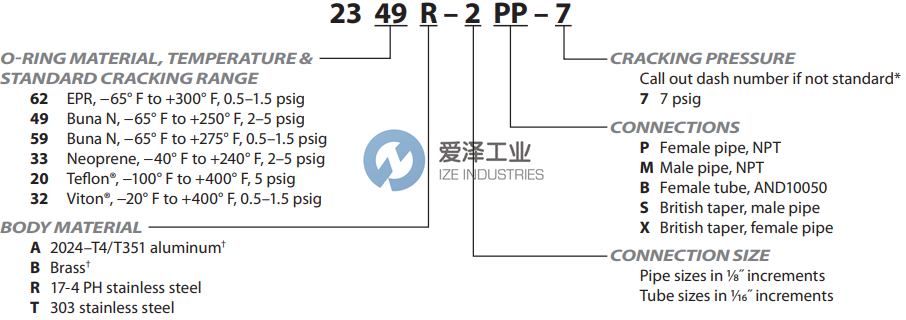

CIRCLE止回阀2300系列选型
CIRCLE止回阀2300系列其他常用型号：
CIRCLE 2359B-1MP
CIRCLE 2349B-2PP
CIRCLE 2349B -2MM
CIRCLE 2349B-2MP
CIRCLE 2349B-2PM
CIRCLE 2359B-2PP
CIRCLE 2359B- 2MM
CIRCLE 2359B-2MP
CIRCLE 2359B-2PM
CIRCLE 2349B-3PP
CIRCLE 2320B-4PP
CIRCLE 2320B-6PP
CIRCLE 2333B-1PP
CIRCLE 2333B-1MP
CIRCLE 2333B-2PP
CIRCLE 2333B-2MM
CIRCLE 2333B-2MP
CIRCLE 2333B-2PM
CIRCLE 2333B-3PP
CIRCLE 2349R-3PP
