KENNAMETAL钻头B041A06100CPG技术参数
| |
SAP Material Number | 4150227 |
ISO Catalog Number | B041A06100CPG |
Grade | KC7325 |

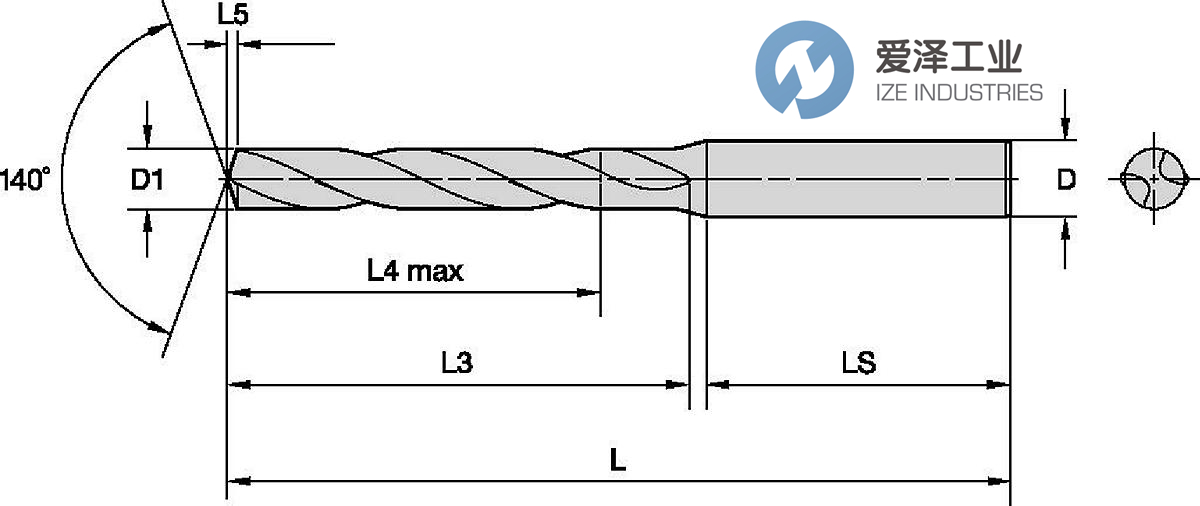

[D1] Drill Diameter M | 6.1000 mm |
[L] Overall Length | 79.0000 mm |
[L3] Flute Length | 34.0000 mm |
[L4] Maximum Drilling Depth | 24.0000 mm |
[L5] Drill Point Length | 1.0200 mm |
[LS] Shank Length | 36.0 mm |
[D] Adapter / Shank / Bore Diameter | 8.0 mm |
KENNAMETAL钻头B041A06100CPG产品介绍
适用于各种材料的通用 SC 钻头。
无边距设计可减少摩擦和热量，从而延长刀具寿命。
用于微钻的优化切屑设计可确保切屑在钻头中心自由流动。
不间断的直切削刃不会产生磨损起点，并且能够均匀分布切削力，从而延长所有材料的刀具寿命并减少切削刃上的崩刃。
KC7325包含适用于宽带应用的双层涂层，TiN 顶层用作磨损指示器，可以更轻松地监控难以看到的小型钻头。
General purpose SC drill for a wide range of materials.
Marginless design for reduced friction and heat — thus longer tool life.
Optimized gashing design for microdrilling ensures free flow of chips in the center of the drill.
Uninterrupted straight cutting lip allows no starting point for wear and enables even distribution of cutting forces for longer tool life in all materials and less chipping on cutting edge.
KC7325™ grade contains a double coating for broad-band applications, and a TiN top layer serves as a wear indicator for easier monitoring of small drills, which can be difficult to see.
KENNAMETAL钻头B041A系列其他常用型号：
KENNAMETAL B041A01191CPG
KENNAMETAL B041A01200CPG
KENNAMETAL B041A01300CPG
KENNAMETAL B041A01321CPG
KENNAMETAL B041A01397CPG
KENNAMETAL B041A01400CPG
KENNAMETAL B041A01500CPG
KENNAMETAL B041A01600CPG
KENNAMETAL B041A01700CPG
KENNAMETAL B041A01800CPG
KENNAMETAL B041A01900CPG
KENNAMETAL B041A01984CPG
KENNAMETAL B041A06100CPG
