ASA HYDRAULIK减震器K16S-100尺寸
order number | SDKSS100 |
|
description | K16S – 100 | |

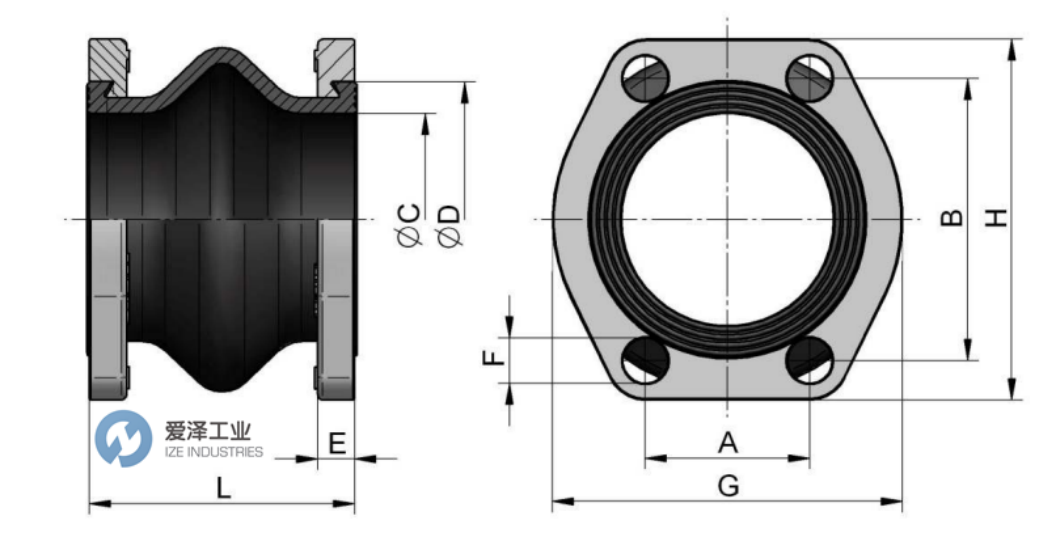

size | ||
SAE | 4" | |
NG* | 100 | |
A[mm] | 77,8 | |
B[mm] | 130,2 | |
D[mm] | 130 | |
C[mm] | 100 | |
±1 | ||
E[mm] | 16 | |
F[mm] | 17 | |
G[mm] | 152 | |
H[mm] | 162 | |
L[mm] | 100 | |
weight[kg] | 2,5 |
ASA HYDRAULIK减震器SAE系列介绍
描述
SAE 补偿器与蝶阀和适配器法兰配合使用。补偿器用于抑制振荡、振动、噪音和运动。用于吸入和回流管路中的操作。
Description
SAE compensators for use with our butterfly valves and adaptor flanges. Compensators are used for damping oscillations, vibrations, noises and movement. For operation in suction and return lines.
ASA HYDRAULIK减震器其他常用型号：
ASA HYDRAULIK SDKSS025
ASA HYDRAULIK K16S- 25
ASA HYDRAULIK SDKSS032
ASA HYDRAULIK K16S - 32
ASA HYDRAULIK SDKSS040
ASA HYDRAULIK K16S - 40
ASA HYDRAULIK SDKSS050
ASA HYDRAULIK K16S- 50
ASA HYDRAULIK SDKSS063
ASA HYDRAULIK K16S- 63
ASA HYDRAULIK SDKSS080
ASA HYDRAULIK K16S- 80
ASA HYDRAULIK SDKSS092
ASA HYDRAULIK K16S - 92
ASA HYDRAULIK SDKSS100
ASA HYDRAULIK K16S- 100
ASA HYDRAULIK SDKSS126
ASA HYDRAULIK K16S- 125
ASA HYDRAULIK Shock absorbers NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于ASA HYDRAULIK减震器K16S-100的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for ASA HYDRAULIK products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
ASA HYDRAULIK减震器K16S-100技术参数及介绍
