GUTEKUNST弹簧T-18710R技术参数
 | |||

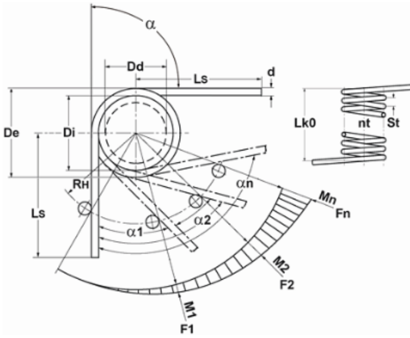

Technical Data | |||
Formula symbols | Value | Unit | Description |
Material | EN 10270-3-1.4310 | - | Type of material . |
Coiling direction | Right | - | Coiling direction |
Leg position | 180 | degree | L eg position when relaxed |
alpha1 | degree | prestressed rotational angle | |
F1 | N | prestressed spring force | |
M1 | Nmm | torque by angle alpha1 | |
alpha2 | degree | loaded rotational angle | |
F2 | N | loaded spring force | |
M2 | Nmm | torque by angle alpha2 | |
alphah | degree | working rotational angle | |
d | 1.25 | mm | Wire diameter |
Di | 11.25 | mm | inner coil diameter |
Dd | mm | diameter of mandrel | |
L .sH | mm | leg length of the lever leg | |
L _sR | mm | leg length of the recumbent leg | |
L k0 | 9.38 | nm | length of spring body |
Ls | 55 | mm | leg length |
RH | mm | leverage | |
Mntol | 46.11 | Nmm | (+/-) Tolerance maximum torque |
Mn | 223.16 | Nmm | maximum torque |
alphan | 147.25 | degree | maximum rotational angle |
nt | 6.5 | pc. | total number of coils |
Ddmax | 10.1 | mm | maximum possible mandrel diameter |
Ddmin | 9 | mm | Min. possible mandrel diameter |
Ditol | 0.3 | mm | (+/-) tolerance of inner coil diameter |
Weight | 3.5335 | g | weight of one spring |
Price aroup | J | - | price group |
