CAL温度控制器CAL3300系列技术参数
Specification | |
Product Category: | Single Loop controller |
Dimensions and size: | 24mm x 48mm x 107mm (HxWxD), 1/32 DIN |
Primary Input Type: | Thermocouple: B, E, J, K, L, N, R, S, T. PT100 : 2 wire. Linear: 0 to 50mV |
Other Inputs: | None |
Output Function: | Heat, Cool, Alarm |
Output Type: | Relay (rly1 2A, rly2 1A resistive load), SSd ( 5Vdc +0/-15% 15mA non-isolated) |
Max. Number of Outputs: | 2 |
Control Type: | PID heat only, PID heat cool , ON/OFF |
Power Supply: | 100–240Vac, 50–60Hz +/- 10% maximum permitted fluctuation, 12V - 24V (AC/DC) +/-20% 4.5 VA Polarity not required |
Communications: | RS232 & RS485 Modbus RTU |
Panel Sealing: | IP66 |
Certifications: | CE, UL, CSA |
Other Functions: | dAC (derivative approach control), Single ramp soak |
Software Tools: | CALgrafix – configuration and datalogging software |

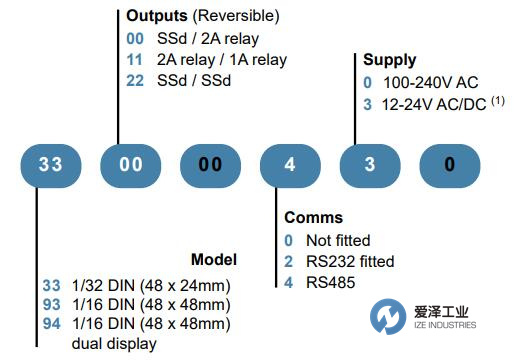

CAL温度控制器CAL3300系列介绍及选型
300 1/32 DIN Single Loop Temperature Controller
Single Loop Controller - 3300
The CAL 3300 1/32DIN temperature controller is designed to be easy-to-use and reliable within the most demanding process and manufacturing applications.
Designed for industrial or scientific applications CAL3300 has an impact resistant smoked fascia with rubberised buttons with positive feedback. PID tuning is simple and efficient whilst the unique dAC function minimises overshoot
Benefits & Features
1 x 4 digit LED display with 2 outputs LED
Easy-to-use autotuning
Simple menu-driven configuration
Single ramp/soak (dwell) program
IP66 protection
CALgrafix datalogging software
300 1/32 DIN 单回路温度控制器
单回路控制器 - 3300
CAL 3300 1/32DIN 温度控制器旨在在最苛刻的过程和制造应用中易于使用且可靠。
CAL3300 专为工业或科学应用而设计，具有耐冲击的烟熏面板，带有带正反馈的橡胶按钮。 PID 调整简单高效，同时独特的 dAC 功能最大限度地减少了超调
优点和特点
1 x 4 位 LED 显示屏，带 2 个输出 LED
易于使用的自动调整
简单的菜单驱动配置
单一斜坡/浸泡（停留）程序
IP66防护等级
CALgrafix 数据记录软件
CAL温度控制器其他常用型号：
CAL CAL330000000
CAL CAL330000430
