OFFICINE OROBICHE流量计FTV系列技术参数
Accuracy: | ± 2% full scale value (3% with spherical float) |
Max temperature | 120° C (higher temperatures on request) |
Lenght of reading scale: | - 220 mm for mod. 210 - 215 - 225 |
Measuring range | 1 ÷ 10 |
Free or guided float | |
Vertical mounting with rising flow | |
Strong structure in painted carbon stee | |
Wetted parts in carbon steel - AISI 316 - PVDF (other material on request) | |
Borosilicate glass measuring tube; lenght 300 mm | |
Gaskets in Viton (other materials on request) | |
Float stop in in PTFE | |
Connections: | flanged ANSI 150 - 300 RF/UNI PN 10-16 2223/29 |
OFFICINE OROBICHE流量计FTV系列介绍
带硼硅酸盐玻璃管的可变面积流量计,用于高低范围的液体和气体。
Variable area flowmeter with borosilicate glass tube, for high and low ranges of liquids and gases.

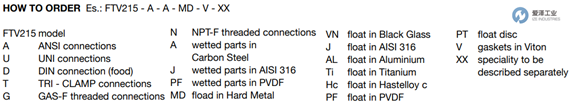

OFFICINE OROBICHE流量计FTV系列选型
OFFICINE OROBICHE流量计FTV240系列其他常用型号:
OFFICINE OROBICHE FTV215.A.A.MD.V.XX
OFFICINE OROBICHE FTV240.G.J.J.E.XX
OFFICINE OROBICHE FTV240.G.A.AL.V
OFFICINE OROBICHE FLOWMETERS NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年,定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气,液压以及气动解决方案的合作伙伴,我们利用我们的全球协作团队,为客户提供先进解决方案,市场知识以及相关增值服务来帮助优化客户的工作效率,提高可靠性和安全性,致力于成为工业产品和解决方案的优质渠道。
如果有任何关于OFFICINE OROBICHE流量计FTV240.G.J.J.E.XX的疑问,请随时与我们沟通(021-31006702)。我们将尽全力解决您的问题。
If you have any question for OFFICINE OROBICHE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
OFFICINE OROBICHE流量计FTV系列FTV240.G.J.J.E.XX技术参数及选型
