S+S温度传感器KFTF - ETHERCATP介绍
DUCT HUMIDITY AND TEMPERATURE SENSOR (± 2.0%) HYGRASGARD® KFTF - ETHERCAT P
Interconnective HYGRASGARD® KFTF - EtherCAT P duct humidity and temperature transmitter with M8 plug-in connector (EtherCATP-encoded), Bluetooth-enabled, in an impact resistant plastic housing with quick-locking screws, optionally with/without display and bar graph, with plastic sinter filter (replaceable), incl. mounting flange.
The sensor device serves to detect various parametres in humidity measurement. It measures relative humidity (0...100% r.H.) and ambient air temperature (–35...+80°C). These measurands are used internally to calculate further output values: absolute humidity (0...80 g/m³), mixture ratio (0...80 g/kg), dew point temperature (–20...+80°C) and enthalpy (0...85 kJ/kg) while ignoring atmospheric air pressure. A long-term stable, digital sensor guarantees precise measuring results. The sensor is factory-calibrated.
EtherCATP-enabled measuring transducer for industrial requirements with maximum reliability: includes easy PLC integration using the devices ESI configuration file, diagnostics (such as communication failure counter), advanced setting options, access to historical data (min/max) and sensor service interval determination. Optionally with large back-lit three-line display (witjh customised programming in the 7-segment and dot-matrix ranges) and bar graph (7-digit, LEDs freely configurable) for graphical display, e.g. as a traffic light indicator.
管道湿度和温度传感器 (± 2.0%) HYGRASGARD® KFTF - ETHERCAT P
互连 HYGRASGARD® KFTF - EtherCAT P 风管湿度和温度变送器,带 M8 插入式连接器(EtherCATP 编码),支持蓝牙,在带快速锁定螺钉的抗冲击塑料外壳中,可选带/不带显示器和条形图,带塑料烧结过滤器(可更换),包括安装法兰。
传感器设备用于检测湿度测量中的各种参数。它测量相对湿度 (0...100% r.H.) 和环境空气温度 (–35...+80°C)。这些被测量在内部用于计算进一步的输出值:绝对湿度 (0...80 g/m³)、混合比 (0...80 g/kg)、露点温度 (–20...+80°C ) 和焓 (0...85 kJ/kg),而忽略大气压力。长期稳定的数字传感器保证了精确的测量结果。传感器经过工厂校准。
支持 EtherCATP 的测量传感器可满足工业要求,具有最高可靠性:包括使用设备 ESI 配置文件轻松集成 PLC、诊断(例如通信故障计数器)、高级设置选项、访问历史数据(最小/最大)和传感器服务间隔确定.可选配大型背光三行显示屏(在 7 段和点阵范围内进行定制编程)和用于图形显示的条形图(7 位,LED 可自由配置),例如作为交通灯指示器。

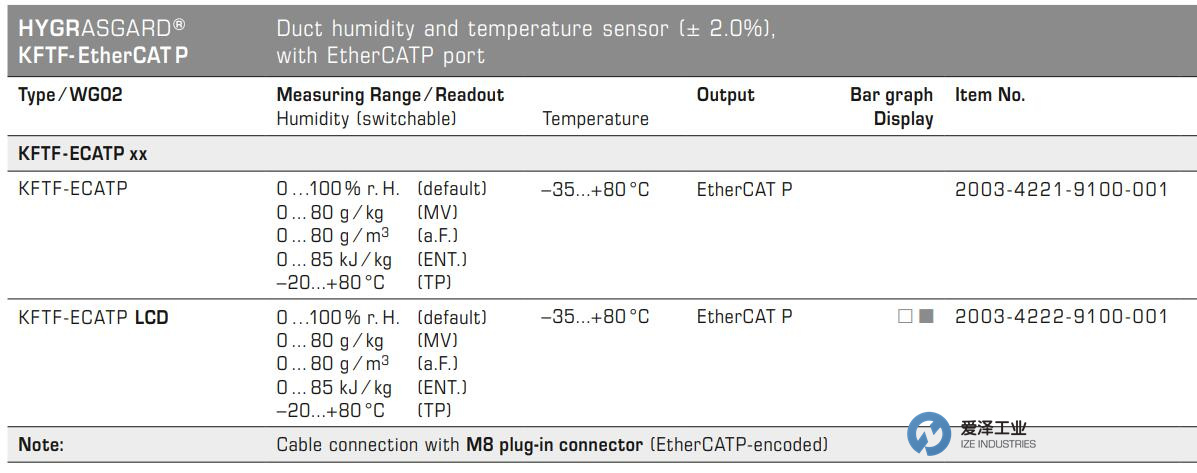

S+S温度传感器KFTF-ECATP选型
S+S温度传感器其他常用型号:
S+S KFTF-ECATP
S+S sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年,定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气,液压以及气动解决方案的合作伙伴,我们利用我们的全球协作团队,为客户提供先进解决方案,市场知识以及相关增值服务来帮助优化客户的工作效率,提高可靠性和安全性,致力于成为工业产品和解决方案的优质渠道。
如果有任何关于S+S温度传感器KFTF-ECATP的疑问,请随时与我们沟通(021-31006702)。我们将尽全力解决您的问题。
If you have any question for S+S products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
