HONEYWELL流量开关WFS-8001-H技术参数
Technical Data | |
operating pressure | 1 MPa |
maximum pressure | 1.75MPa |
Insulation resistance greater than | 100Ω, DC500VM |
Maximum withstand voltage | AC1500V/1min |
Contact life | 1000,000 times |
Bellows life | 500,000 times |
Maximum allowable flow rate of fluid | 3m/sec. |
medium temperature | -20ºC ~ 110ºC |
ambient temperature | -20ºC ~ 60ºC |
Storage temperature | -40ºC ~ 60ºC |
Target material | Stainless steel |
IP rating | IP54 |
HONEYWELL流量开关WFS8000系列介绍
WFS流量开关具有单刀双掷输出,性能优异,高精度可靠性,可安装在水管和对铜无腐蚀性液体中,当液体流量超过或低于调整速率时,可关闭一个回路,打开另一个回路,典型应用于连锁作用或断流保护的场所。
WFS flow switch has SPDT output, excellent performance, high precision and reliability, can be installed in water pipes and non-corrosive liquids to copper, when the liquid flow exceeds or falls below the adjustment rate, it can close one circuit and open the other circuit , which is typically used in places with interlocking action or current interruption protection.

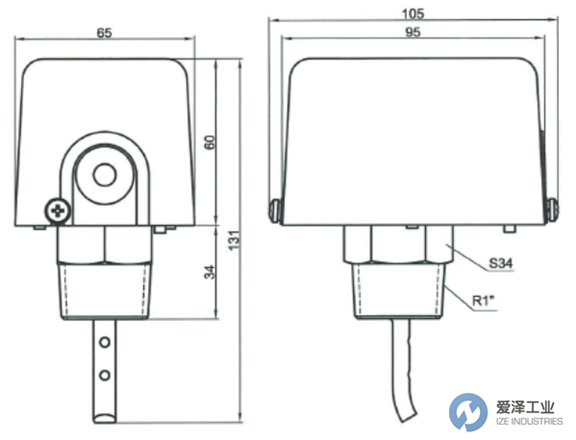

HONEYWELL流量开关WFS8000系列技术尺寸
HONEYWELL流量开关WFS8000系列其他常用型号:
HONEYWELL WFS-8001-H
HONEYWELL WFS-8002-H
HONEYWELL Flow Switch NEW + ORIGINAL+ ONE YEAR WARRANTY
