Level Developments双轴倾角传感器LCH-A-D系列技术参数
Parameter | Value |
Supply Voltage | 7-30 V |
Operating Current | 15 mA |
Output Impedance | 100 Ω |
Operating Temperature | -40 to 85 °C |
Size: | Width:46.0 mm |
Measuring range | ±10 to ±60 ° |
Zero Output Voltage | 2.5V |
Zero Bias Error | ±0.1 ° |
Zero Bias Temperature Error | 0.02 °/°C |
Sensitivity Temperature Error | 0.01 %/°C |
Accuracy (20°C) | ±0.3 ° |
Accuracy (-10 to 60°C) | ±1 ° |
Long Term Stability | 0.1 ° |
Resolution (@1Hz BW) | 0.05 ° |
Frequency Response | 1 Hz |
Mechanical shock | 3000 (0.5ms) g |
Cable Length | 2 m |
Weight | 24 g |
Level Developments双轴倾角传感器LCH-A-D系列介绍
LCH-A-D 是一种低成本的双轴倾角传感器,采用密封的机加工铝外壳。 它有一个用于 X 和 Y 测量轴的模拟接口。 还提供仅 PCB 的版本(部件号 LCP-A-D)。
The LCH-A-D is a low cost dual axis inclinometer sensor supplied in a sealed machined Aluminium housing. It has an analogue interface for each of the X and Y measurement axis. A PCB only version is also available (part number LCP-A-D).

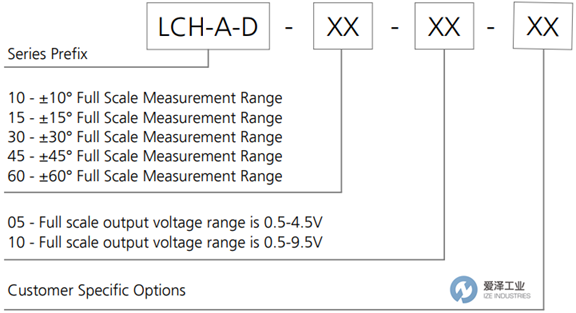

Level Developments双轴倾角传感器LCH-A-D系列选型
Level Developments双轴倾角传感器LCH-A-D系列其他常用型号:
Level Developments LCH-A-D-10-05
Level Developments LCH-A-D-10-10
Level Developments LCH-A-D-15-05
Level Developments LCH-A-D-15-10
Level Developments LCH-A-D-30-05
Level Developments LCH-A-D-30-10
Level Developments LCH-A-D-45-05
Level Developments LCH-A-D-45-10
Level Developments LCH-A-D-60-05
Level Developments LCH-A-D-60-10
Level Developments Dual Axis Inclinometer Sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
