SETRA传感器266系列技术参数
Specification | ||
Accuracy RSS*(at constant temp.) | ±1.0% FS | |
Non-Linearity (BFSL) | ±0.98% FS | |
Hysteresis | 0.10% FS | |
Non-Repeatability | 0.05% FS | |
Compensated Range °C(°F) | -18 to +65 (0 to +150) | |
Zero/Span Shift %FS/°C(°F) | ±0.06 (±0.033) | |
Maximum Line Pressure | 69 kPa | |
Overpressure (DP on either side) | Range | Overpressure |
<250 Pa | 14 kPa | |
250 up to 625 Pa | 35 kPa | |
>625Pa | 69 kPa | |
Warm-up Shift | ±0.1% FS Tota | |
Temperature | ||
Operating* °C (°F) | -18 to +65 (0 to +150) | |
Storage °C (°F) | -40 to +85 (-40 to +185) | |
Physical Description | ||
Case | Fire Retardent Glass Filled | |
Polyester (UL 94 V-0 Approved) | ||
Pressure Fittings | 6.2 mm | |
Weight | 150 grams (5.3 oz.) | |
Electrical Data (Current) | ||
Circuit | 3-Wire (Com, Out, Exc) | |
Excitation/Output* | 12 to 30 VDC/VAC / 0 to10 VDC** | |
9 to 30 VDC/VAC / 0 to 5 VDC** | ||
pressure | 2.5 VDC (±50 mV) | |
Output Impedance | 100 Ohms | |
Circuit | 2-Wire | |
Output* | 4 to 20 mA** | |
pressure | 12 mA | |
Electrical Load | 0 to 800 Ohms | |
Electrical Data (Voltage) | ||
Circuit | 3-Wire (Com, Out, Exc) | |
Excitation/Output* | 12 to 30 VDC/VAC / 0 to10 VDC** | |
9 to 30 VDC/VAC / 0 to 5 VDC** | ||
pressure | 2.5 VDC (±50 mV) | |
Output Impedance | 100 Ohms | |
SETRA传感器266系列介绍
Setra 266 压力传感器可感应差压或表压（静态）压力并将此压力差转换为成比例的电气输出。
266 提供高电平 0-10 VDC 和 0 -5 VDC 输出或 4-20 mA 输出。
266 系列超低压传感器可用于低至 0 至 ±50 Pa 满量程至 5 kPa 满量程的气压范围。 在正常环境温度环境下，静态精度为 ±1% 满量程。 在 -18 至 +65 °C（0°F 至 +150°F）的温度范围内，这些装置的温度补偿小于热误差的 ±0.06% FS/°C (±0.033% FS/°F)。
Setra 266 pressure transducers sense differential or gauge (static) pressure and converts this pressure difference to a proportional electrical output.
The 266 is offered with a high level 0-10 VDC and 0 -5 VDC output or a 4-20 mA output.
The 266 Series very low pressure transducers are available for air pressure ranges as low as 0 to ±50 Pa full scale up to 5 kPa full scale. Static accuracy is ±1% full scale in normal ambient temperature environments. The units are temperature compensated to less than ±0.06% FS/°C (±0.033% FS/°F) of thermal error over the temperature range of -18 to +65 °C (0°F to +150°F).

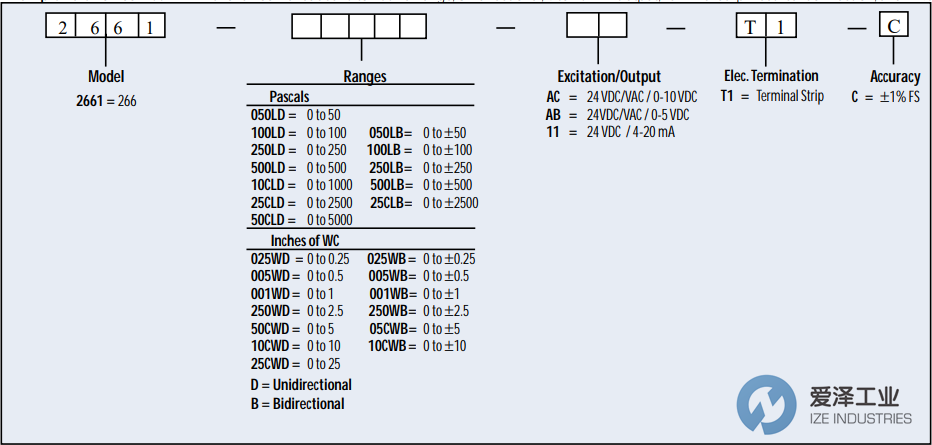

SETRA传感器266系列选型
SETRA传感器266系列其他常用型号：
SETRA 2661100LD11T1C
SETRA 2661250LD11T1C
SETRA 2661500LD11T1C
SETRA 266110CLD11T1C
SETRA 266125CLD11T1C
SETRA 2661500CLD11T1C
SETRA 2661050LB11T1C
SETRA 2661100LB11T1C
SETRA 2661250LB11T1C
SETRA 2661500LB11T1C
SETRA 266125CLB11T1C
SETRA 2661-250L-D-AC-T1-C
