SERVO DRIVE滑环KS25系列技术参数
Voltage | 240Vac/240Vdc |
Contact material | Gold alloy |
Leads AWG (2A) | 26 |
Leads AWG (6A) | 20 |
Leads AWG (8A) | 16 |
Leads | tinning PTFE |
Dielectric strength | 500V AC@ 60Hz, 60s |
Insulation resistance | ≥500MQ/500VDC |
Dynamic contact resistance | < 100mQ @6Vdc 50mA 5RPM |
Operating Speed | 250rpm |
Temperafure | -20°C~+80°C(ET option -40°C ~+80°C) |
Housing material | Aluminium alloy |
Shaft material | Engineering plastic |
Protection degree | IP51 |
Estimated life | 10^7 revs |
Bearings | steel miniature precision ball bearings |
SERVO DRIVE滑环KS25系列介绍
KS 系列采用特殊技术，允许在刷子和环之间获得多个接触点，低摩擦扭矩，降低机械噪音和低磨损。
滑环可用于任何需要将电和/或电力信号传输到间歇或连续旋转轴的系统。 由于环直径小，KS 系列在刷子和环之间提供低圆周速度，以及减少动态不平衡，这意味着非常低的磨损。 此外，使用贵金属（金到金合金）确保使用寿命长，减少电路之间的噪音和干扰，低摩擦扭矩。
The KS Series make use of a special technology allowing to get multiple contact points between brushes and ring, low friction torque, reduced mechanical noise and low wear.
Slip Rings can be used in any system requiring the transmission of electrical and/or power signals to an intermittently or continuously rotating shaft. Thanks to the small ring diameter, the KS Series grants low peripheral speed between brushes and rings, as well as reduced dynamic imbalance what means very low wear. Moreover, the use of noble metals (gold to gold alloy) assures long lasting using life, reduced noises and interferences between circuits, low friction torque.

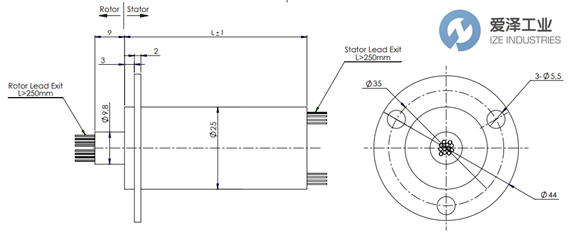

SERVO DRIVE滑环KS 25系列技术尺寸
SERVO DRIVE滑环KS25系列其他常用型号：
SERVO DRIVE KS 25-30x2A
SERVO DRIVE KS 25-4x6A-18x2A
SERVO DRIVE KS 25-3x8A-1 5x2A
SERVO DRIVE KS 25-36x2A
SERVO DRIVE KS 25- 4x6A-24x2A
SERVO DRIVE KS 25-4x8A-16x2A
SERVO DRIVE KS 25-46x2A
SERVO DRIVE KS 25-56x2A
SERVO DRIVE KS 25-4x6A-44x2A
SERVO DRIVE KS 25-36x2A
SERVO DRIVE Slip Rings NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于SERVO DRIVE滑环KS25-4x6A-44x2A-AL的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for SERVO DRIVE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
SERVO DRIVE滑环KS25系列KS25-4x6A-44x2A-AL技术参数及尺寸
