SKF流线监控器FL15系列技术参数
Technical data | |
Flow meter type | FL15 |
Flow rate | 0,1–15,0 l/min (0.2–30.0 pt/min) |
Group size | 2, 4, 6, 8, 10 flow meters |
Viscosity range | 32–1 000 mm2/s |
Operating pressure (max.) | 10 bar (145 psi) |
Operating temperature | 0 to + 65 °C (+32 to 150 °F) |
Protection class | IP 65 |
Power supply | 20–36 V DC |
Power consumption | 5 W |
Alarm relay | Potential free contact; max. load 30 V DC / 1 A, 120 V AC / 1 A, resistive load |
Inlet connections | BSPP G 1 or NPT 1 |
Outlet connections | BSPP G 1/2 or NPT 1/2 |
SKF流线监控器FL系列介绍
油循环润滑系统的流量控制和监测
SKF 流线监控器用于划分、测量和控制油循环润滑系统中的流量。三种不同的流量计尺寸可以控制和监测 0.1 至 100 l/min 的流量，工作粘度为 32 至 1000 mm 2 /s。流量计单独运行，可以单独编程和调整。无论油温和粘度如何变化，SKF 流线监控器都能提供准确的结果。可以进行计算机配置和远程监控。监控模块可提供通用警报、每个润滑点和过程控制接口的单独警报。
Flow rate control and monitoring for oil circulation lubrication systems
The SKF Flowline Monitor is used to divide, measure and control the flow rate in oil circulation lubrication systems. Three different flow meter sizes enable control and monitoring of 0,1 to 100 l/min flows with operating viscosities from 32 to 1000 mm2/s. The flow meters operate individually and can be programmed and adjusted separately. Regardless of oil temperature and viscosity changes, the SKF Flowline Monitor provides accurate results. Computer configuration and remote monitoring are possible. Monitoring modules are available offering common alarms, individual alarms for each lubrication point and interfaces to process controls.

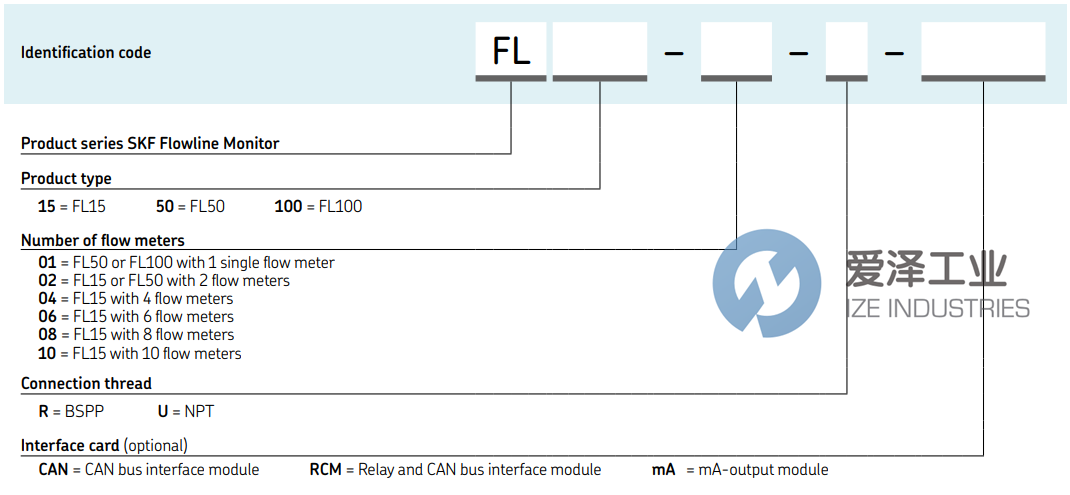

SKF流线监控器FL系列选型
SKF流线监控器FL系列其他常用型号：
SKF FL15-02-R
SKF FL15-04-R
SKF FL15-06-R
SKF FL15-08-R
SKF FL15-10-R
SKF FL 50-R
SKF FL 50-02-R
SKF FL100-01-R
SKF FL15-02-R-CAN
SKF FL15-04-R-CAN
SKF FL15-06-R-CAN
SKF FL15-08-R-CAN
SKF FL15-10-R-CAN
SKF FL 50-R-CAN
SKF FL 50-02-R-CAN
SKF FL100-01-R-CAN
