VOEGTLIN流量计red-y smart系列技术参数
PERFORMANCE DATA | |
Media (real gas calibration) | Air*, O2*, N2, He, Ar, CO2, H2, CH4, C3H8 (other gases and gas mixtures on request) |
Response time | Meter (GSM): ± 80ms*; Controller (GSC): ± 500ms* |
Repeatability | ± 0.2% of full scale (according to SEMI standard E56-0309) |
Longterm stability | < 1% of measured value / year |
Power supply | 24 Vdc (18 – 30 Vdc), 15 Vdc on request |
Current consumption Standard | Meter (GSM): max. 100 mA; Controller (GSC): max. 250 mA (GSC with valve type 8 max. 490mA) |
Current consumption Profinet RT / EtherCAT | Meter (GSM): max. 125 mA; Controller (GSC): max. 340 mA (GSC with valve type 8 max. 560mA) |
Operation pressure | 0.2 – 11 bar a (3 – 160 psia) / GSC with valve type 4.5 and 8 max. 8 bar a (120 psia) |
Temperature (environment/gas) | 0 – 50°C (32 – 122°F) |
Body Materials | Anodized aluminum, optional stainless steel electropolished |
Seals | FKM, EPDM, optional FFKM |
Pressure sensitivity | < 0.2% / bar of reading (typical N2) |
Temperature sensitivity | 0.025% FS measuring range type per 1°C (<0.012% per 1°F) |
Warm-up time | < 1 sec. for full accuracy |
INTEGRATION & INSTALLATION | |
Output signals analog | 0-20 mA, 4-20 mA, 0-5 V, 1-5 V, 0-10 V, 2-10 V |
Output signals digital | RS-485; Modbus RTU (Slave); LabView-VIs available Option: Profibus DP-V0, DP-V1 / Profinet RT / EtherCAT |
Process connection | G¼” (BSPP* female) up to 60 ln/min (64 SLPM) |
Inlet section | None required |
Electrical connection | Sub D plug, 9 pole |
Mounting orientation | Any position (consult manufacturer above 5 bar or vertical mounting) |
SAFETY | |
Test pressure | 16 bara (240 psia) |
Leak rate | < 1 x 10-6 mbar l/s He |
Ingress protection class | IP50 |
EMC | EN 61326-1 |
VOEGTLIN流量计red-y smart系列介绍
可靠的技术和行业标准接口使red-y smart系列热式质量流量计 (MFM) 和质量流量控制器 (MFC) 特别适用于气体输送系统和工厂工程应用中的测量和控制。
» 标准化信号可实现与控制系统的简单连接
» 测量对压力和温度变化不敏感
» 所有设备均使用真实气体进行校准。 这确保了高精度和可重复性。
校准可追溯至METAS标准
» 仪表和控制器易于维修和维护
» 设备具有最小的压降
» 提供全套配件：电缆、配件等。
» ‹Plug & control›使用免费软件‹get red-y›：通过任何PC轻松访问（无需额外的电子设备）
Reliable technology and industry standard interfaces make the red-y smart series thermal mass flow meters (MFM) and mass flow controllers (MFC) particularly suitable for measurement and control in gas delivery systems and plant engineering applications.
» Standardized signals enable simple connection to control systems
» Measurements are insensitive to pressure and temperature changes
» All devices are calibrated with real gas. This ensures high accuracy and reproducibility.
The calibration is traceable to the METAS standard
» Meters and controllers are easy to service and maintain
» The devices have minimal pressure drop
» A full range of accessories is available: Cables, fittings, etc.
» ‹Plug & control› with the free software ‹get red-y›: Simple access via any PC (no additional electronic equipment required)

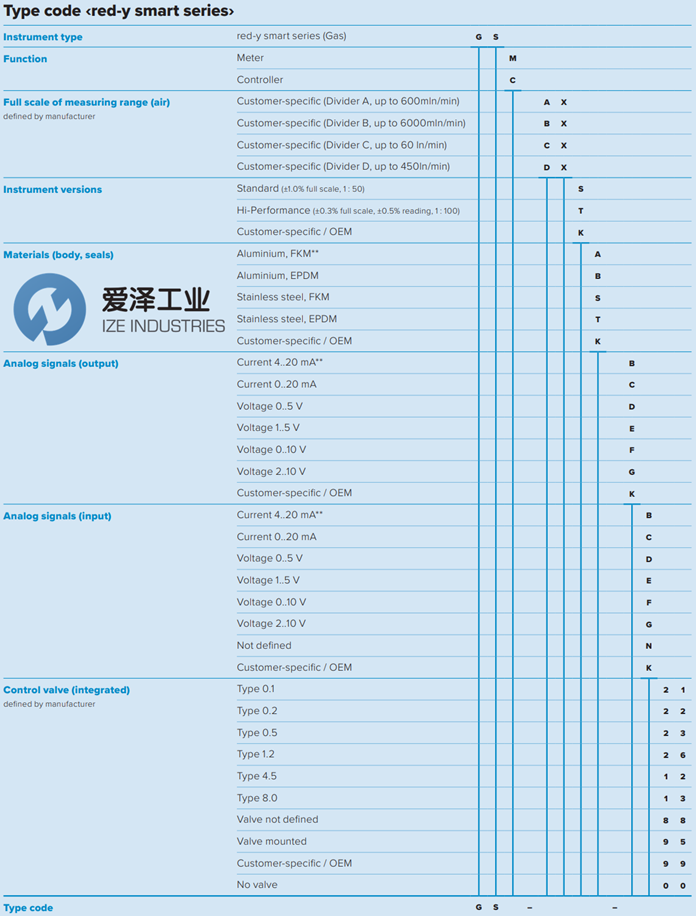

VOEGTLIN流量计red-y smart系列选型
