FLINTEC称重传感器SB4-50KN C3技术参数
Maximum capacity (Emax) | 50 kN |
Metric equivalents (1lb=0.45359kg) | 5099 kg |
Accuracy class according to OIML R60 | C3 |
Max number of verification intervals (nmax) | 3,000 |
Minimum load cell verification interval (vmin) | Emax /11,000 |
Temperature effect on minimum dead load output (TC0) | ± 0.0127 %*RO/°10C |
Temperature effect on sensitivity (TCRO) | ± 0.0100 %*RO/°10C |
Combined error | ± 0.0200 %*RO |
Non-linearity | ± 0.0166 %*RO |
Hysteresis | ± 0.0166 %*RO |
Creep error (30 minutes) / DR | ± 0.0166 %*RO |
Rated Output (RO) | 2 ± 0.1% mV/V |
Calibration in mV/V/ (A...I classified) | ± 0.05 (± 0.005) % |
Excitation voltage | 5...15 V |
Zero balance | ± 5 %*RO |
Input resistance (RLC) | 1 ,100 ± 50 Ω |
Output resistance (Rout) | 1 ,000 ± 2 Ω |
Insulation resistance (100 V DC) | ≥ 5 ,000 MΩ |
Safe load limit (Elim) | 200 %*Emax |
Ultimate load %*Emax | 300 %*Emax |
Safe side load | 100 %*Emax |
Compensated temperature range | –10...+40 °C |
Operating temperature range | –40...+80 (ATEX –40...+60) °C |
Load cell material | stainless steel 17-4 PH (1.4548) |
Sealing | complete hermetic sealing; cable entry sealed by glass to metal header |
Protection according EN 60 529 | IP68 (up to 2 m water depth) / IP69K |
Packet weight | 1.4 (5-20kN), 2.9 (50kN), 7.1 (100kN)kg |
FLINTEC称重传感器SB4系列介绍
SB4是一款高精度、薄型弯曲梁称重传感器，具有多种容量。全不锈钢结构和完整的密封确保在严苛的工业应用中具有可靠的精度和坚固性。由于盲孔负载引入装置与自对准支脚相结合，SB4是高精度称重平台的理想选择。该型号可与SB5完全互换。
The SB4 is a high accuracy, low profile bending beam load cell available in a wide range of capacities. All stainless steel construction and complete hermetic sealing ensures reliable accuracy and robustness in harsh industrial applications. The SB4 is the ideal choice for high accuracy weighing platforms due to the blind-hole load introduction arrangement combined with the self-aligning feet. This model is fully interchangeable with the potted SB5.

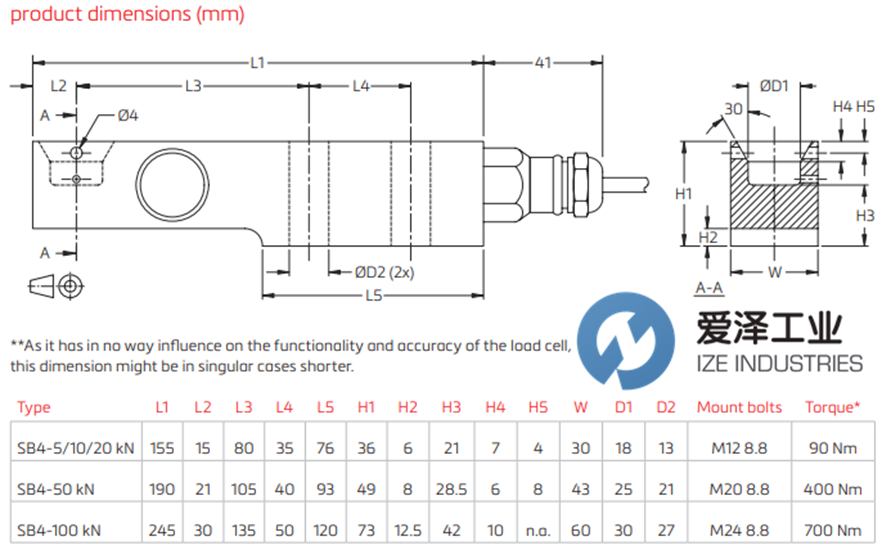

FLINTEC称重传感器SB4系列技术尺寸及选型
FLINTEC称重传感器SB4系列其他常用型号：
FLINTEC SB4-50KN (GP)
FLINTEC SB4-50KN C1
FLINTEC SB4-50KN C3
FLINTEC SB4-50KN C3 MI 7.5
FLINTEC SB4-5KN (GP)
FLINTEC SB4-5KN C1
FLINTEC SB4-5KN C3
FLINTEC SB4-5KN C3 MI 7.5
FLINTEC SB4-10KN (GP)
FLINTEC SB4-10KN C1
FLINTEC SB4-10KN C3
FLINTEC SB4-10KN C3 MI 7.5
FLINTEC SB4-20KN (GP)
FLINTEC SB4-20KN C1
FLINTEC SB4-20KN C3
FLINTEC SB4-20KN C3 MI 7.5
FLINTEC SB4-100KN (GP)
FLINTEC SB4-100KN C1
FLINTEC SB4-100KN C3
FLINTEC SB4-100KN C3 MI 7.5
FLINTEC Beam Load Cell NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于FLINTEC称重传感器SB4-50KN C3的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for FLINTEC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
