PCB传感器039237-50022/B技术参数
Performance | |
Measurement Range(Full Scale Capacity) | 22.6 Nm |
Sensitivity(output at rated capacity) | 2.0 mV/V |
Non-Linearity | ≤ 0.25 % FS |
Hysteresis | ≤ 0.25 % FS |
Non-Repeatability | ≤ 0.05 % FS |
Interchangeabilty | ≤ 0.30 % FS |
Environmental | |
Overload Limit | 33.9 Nm |
Temperature Range(Operating) | -18 to +93 °C |
Temperature Range(Compensated) | +21 to +66 °C |
Temperature Effect on Output(Maximum) | ± 0.0018 %Reading/°C |
Temperature Effect on Zero Balance(Maximum) | ± 0.0018 %FS/°C |
Electrical | |
Bridge Resistance | 350 Ohm |
Excitation Voltage | 10 VDC |
Insulation Resistance | ≥ 5 GOhm |
Zero Balance | ≤ 2 % FS |
Counts Per Revolution | 1472 |
Resolution w/ Quadrature | 1/4 ° |
Output Voltage | High 5V to Low 0.5V |
Power Required(maximum) | 5 VDC @ 120mA |
Magnetic Encoder(Poles) | 360 |
Shunt Calibration | ≤ 0.25 % FS |
Auto ID | TTL Proprietary |
Physical | |
Size (Shaft Length x Housing Length x Housing Height) | 82.0 mm x 58.4 mm x 50.8mm |
Weight | 386 gm |
Mounting | 9.52 mm Sq Drive |
Sensing Element | Strain Gage |
Housing Material | Aluminum |
Shaft Material | Steel |
Electrical Connector | PT02H-12-10P |
Maximum Speed | 2500 RPM |
PCB传感器039237-50022/B产品介绍
旋转扭矩角度传感器，带Auto-ID，200 lbf-in (22.6 Nm)，3/8 英寸方形驱动，10针PT插座
Rotary Torque Angle Transducer, w/Auto-ID, 200 lbf-in (22.6 Nm), 3/8-inch Square Drive, 10-pin PT Receptacle

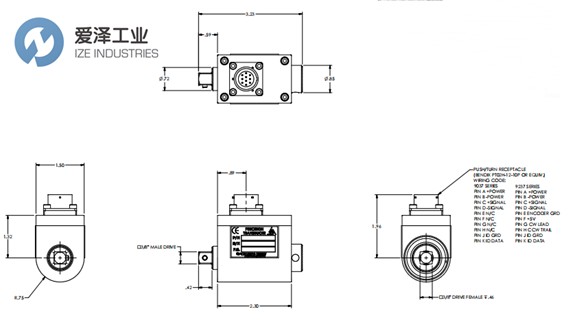

PCB传感器039237-50022/B技术尺寸
