MONITRAN加速度计MTN/1187C系列技术参数
Technical | |
Output current | 4-20mA DC proportional to rms acceleration (g rms) |
Supply voltage | 12-32V DC (4-20mA) |
Frequency response | 2Hz to 1kHz ±10% |
Mounted base resonance | 5kHz (nominal) |
Isolation | Base isolated |
Dynamic range | 50g peak |
Transverse sensitivity | Less than 5% |
Operating temperature | -25 to 90°C |
Temperature sensitivity | 0.08%/°C |
Case material | Stainless stee |
Cable | Integral stainless steel overbraided ETFE |
Standard cable length | 5m |
Maximum cable length | 100m |
Mounting torque | 8Nm |
Weight | 150g (nominal) |
Sealing | IP67 |
MONITRAN加速度计MTN/1187C系列介绍
General purpose, top-entry accelerometer with DC output proportional to acceleration. Made from robust stainless steel throughout for continuous vibration monitoring in harsh environments. Sealed to IP67 with industry standard two wire 4-20mA output proportional to sensor range that can connect directly to PLC, DCS and other industrial controllers. Includes integral 3-pin 62GB connector and is available with a wide range of mountings.
通用、顶部入口加速度计，直流输出与加速度成正比。整体由坚固的不锈钢制成，可在恶劣环境中进行连续振动监测。密封至IP67，具有与传感器范围成比例的工业标准两线4-20mA输出，可直接连接到PLC、DCS和其他工业控制器。包括一体式3针62GB连接器，并提供多种安装方式。
MONITRAN加速度计MTN系列其他常用型号：
MONITRAN MTN/1187CM8-7
MONITRAN MTN/1187C-1
MONITRAN MTN/1185, C
MONITRAN MTN/1185I, C
MONITRAN MTN/1185W
MONITRAN MTN/1185IW
MONITRAN MTN/1187, C
MONITRAN MTN/1187W
MONITRAN MTN/1187IC
MONITRAN MTN/1187IW
MONITRAN Air humidity sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于MONITRAN加速度计MTN/1187CM8-7的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for MONITRAN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse oMTN/1187 website: www.ize-industries.com.

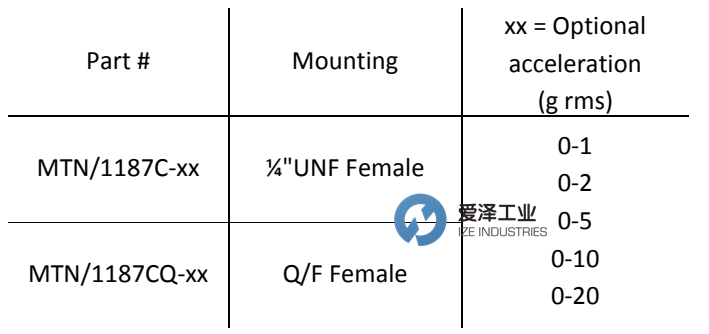

MONITRAN加速度计MTN/1187C系列MTN/1187CM8-7介绍及选型
