FOXBORO电导率电极871EC-sp0-3V技术参数
Description | 871EC = Electrodeless Conductivity Sensor |
Sensor Body Material, Temperature Limits, and Thermistor or RTD | SP = |
Sensor Wetted Metallic and Mounting Parts | 0 = None - Universal Mount |
Optional Selections Cable Options | 3 = Nonstandard Integral Cable; specify length from 1 to 30 m (3 to 100 ft) (c) -3 |
Optional Selections (Cont.) O-Ring Options | V = Viton O-rings |
FOXBORO电导率电极871EC系列介绍
871EC型无极电导率传感器与各种支持的传感器附件一起，可在大多数类型的过程液体中提供抗污垢测量。由于无电极技术和创新的传感器设计，将实现多年的连续运行和有意义的溶液电导率指示。
871EC传感器可与875EC智能分析仪，870ITEC智能变送器，873EC和873AEC分析仪以及870EC变送器一起使用。传感器有多种配置和适合各种条件的材料。
传感器测量溶液回路中的感应电流。他们获得专利的专利设计包括封装在传感器中的两个或三个环形缠绕线圈，这些线圈浸没在溶液中。 施加到一个环形线圈的交流信号在第二个线圈中感应出一个电流，该电流与溶液的电导率成正比。
The Model 871EC Electrodeless Conductivity Sensors, in conjunction with a variety of supporting sensor accessories, provide fouling-resistant measurements in most types of process liquids. Because of the electrodeless technique and innovative sensor design, years of continuous operation and meaningful indication of solution conductivity will be realized.
The 871EC Sensors are used with 875EC Intelligent Analyzers, 870ITEC Intelligent Transmitters, 873EC and 873AEC Analyzers, and 870EC Transmitters. Sensors are available in a number of configurations and materials suitable for a variety of conditions.
The sensors measure an induced current in a loop of solution. Their patented proprietary design comprises two or three toroidally wound coils encapsulated within the sensor which is immersed in the solution. An ac signal, applied to one toroidal coil, induces a current in the second coil that is directly proportional to the conductance of the solution.

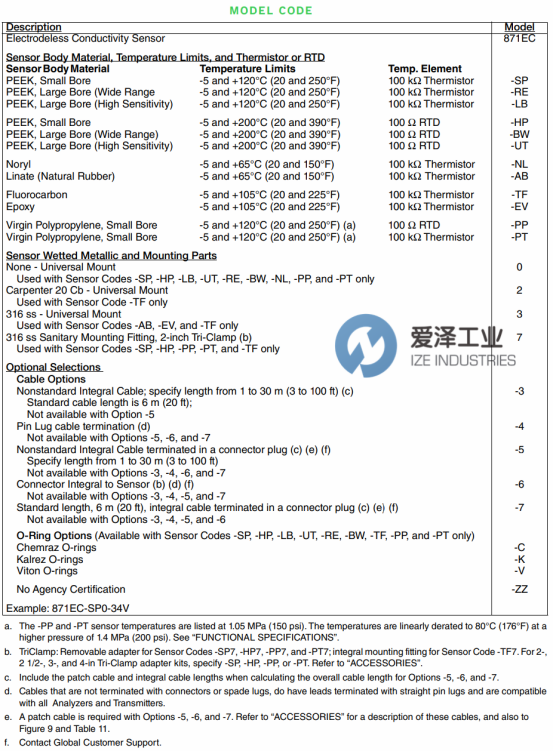

FOXBORO电导率电极871EC系列选型
FOXBORO电导率电极871EC系列其他常用型号：
FOXBORO 871EC-sp0-3V
FOXBORO 871EC-TF2-3V
FOXBORO 873EC-BIYGZ-7
FOXBORO 871EC-TF7-4
FOXBORO 871EC-TF7-3
FOXBORO 871EC-EV3-A
FOXBORO 871EC-PP0-4
FOXBORO 871EC-SP0-3V
FOXBORO 871EC-LB0-4
FOXBORO 871EC-PN3
FOXBORO 871EC-HPO
FOXBORO 871EC-NL0-3
FOXBORO 871EC-SP0-4
FOXBORO Conductivity Sensors NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业集产品开发、设计、制造、销售于一体，代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于FOXBORO电导率电极871EC-sp0-3V的疑问，请随时致电我们，爱泽工业（86-021-31006702）。我们将尽全力解决您的问题。
If you have any question for FOXBORO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com/browse our website: www.ize-industries.com.
FOXBORO电导率电极871EC系列871EC-sp0-3V技术参数及选型
