MicroE编码器MercuryII 1900系列技术参数
Sensor Size | 13.49mm×32.00mm×8.73mm |
Power Supply: | 5VDC ±5% @ 48mA when used with recommended termination (see installation manual) |
Temperature Operating: | 0 to 70°C |
Storage: | Storage: -20 to 85°C |
Humidity: | 10 to 90% RH non-condensing |
EMI: | CE Compliant |
Shock: | 300G 0.5 ms half sine |
Vibration: | 30G at 17Hz |
Sensor Weight: | 6g (Sensor without cable) |
Sensor Cable: | Double Shield |
MicroE编码器MercuryII1900系列介绍
MII 1900是建立在经过现场验证的Mercury技术平台上的。Mercury II以更小、更智能、更快而闻名，它建立在最初的水星系列基础上，增加了性能、多功能性、坚固性和易用性。
• 小型，低质量的传感器与超低的z高度适合于紧凑的运动系统
• 低噪声，高精度输出信号-分辨率可达1.2nm；远程精度可达±1μm(线性玻璃尺度可达130mm长)
• 高速运行-7.2m/s
• 多功能-一个传感器工作与激光胶带或线性玻璃秤
• 广泛的传感器对准公差和对准工具的红/黄/绿设置LED使传感器快速对准
The Mercury II™ 1900 is built on the field-proven Mercury™ technology platform. Known for being smaller, smarter and faster, Mercury II builds on the original Mercury series and adds increased performance, versatility, robustness, and ease-of-use.
• Small, low-mass sensor with ultra low Z-height fits in compact motion systems
• Low noise, high accuracy output signals - resolution up to 1.2nm;long-range accuracy up to ± 1μm (linear glass scales up to 130mm long)
• High-speed operation - 7.2m/s
• Versatility - one sensor works with laser tape or linear glass scales
• Broad sensor alignment tolerances and the Alignment Tool’s red/yellow/green setup LEDs make sensor alignment fast

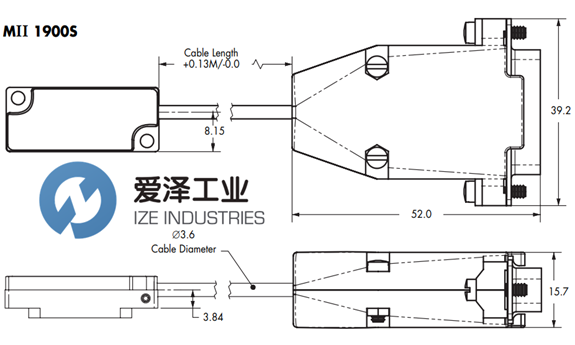

MicroE编码器MercuryII1900S技术尺寸
MicroE编码器MII 1900S/系列其他常用型号：
MICROE MII1910S
MICROE MII1930S
MICROE MII1950S
MICROE MII1900S
MicroE Encoders NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于MicroE编码器MercuryII1900S的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for MicroE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
MicroE编码器MercuryII 1900系列MercuryII1900S技术参数及尺寸
