KUBLER编码器KIS50系列技术参数
Technical data | |
Mechanical | |
Dimension | Ø 58 mm |
Shaft type | 6 mm shaft, with flat surface |
Flange type | Synchro flange / Servo flange / Clamping flange |
Working temperature | -20 °C ... +70 °C |
Protection level | IP65 |
Connection types | Axial cable |
Max. rotational speed | 6.000 min-1 |
Weight | 400 g |
Electrical | |
Scanning | optical |
Resolution max. | 5.000 ppr incremental |
Power supply | 5 V DC |
Interfaces | Gegentakt |
KUBLER编码器KIS50系列介绍
Sendix KIS50/KIH50增量式标准编码器采用光学传感器，旨在实现高经济效益，分辨率可达每转5000脉冲。这些编码器融合了Sendix先进的技术，具有高抗振性和抗安装误差能力，为对成本敏感的应用树立了新的标杆。它们是标准应用和简单机械的理想之选。
The Sendix KIS50 / KIH50 incremental standard encoders with optical sensors are designed for highest economic efficiency and are available up to a resolution of 5000 pulses per revolution. Special details from the sophisticated Sendix technology can be found in these encoders. This results in a high resistance to vibration and installation error. It sets new standards in cost-sensitive applications. They are ideal for standard applications and for use in simple machines.

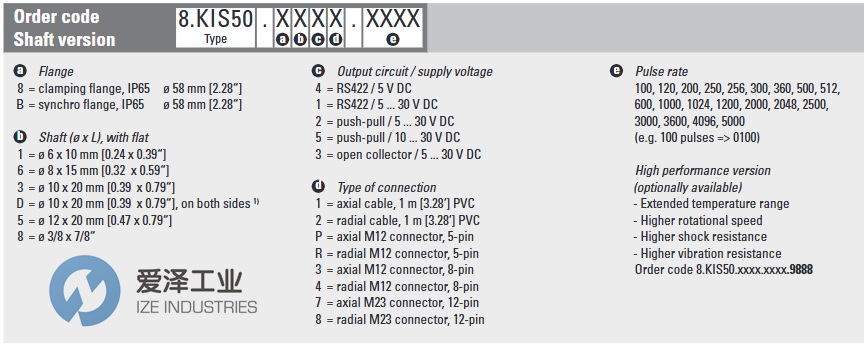

KUBLER编码器KIS50系列选型
KUBLER编码器KIS50系列其他常用型号：
KUBLER 8.KIS50.8550.1024.F014
KUBLER 8.KIS50.8352.2000
KUBLER 8.KIS50.8352.0500
KUBLER 8.KIS50.835A.5000.0050
KUBLER 8.KIS50.8352.1024
KUBLER 8.KIS50.8652.5000
KUBLER 8.KIS50.8318.5000
KUBLER 8.KIS50.832A.1024.0050
KUBLER 8.KIS50.832B.1024.0020
KUBLER 8.KIS50.835B.0200.0050
KUBLER INCREMENTAL ENCODERS NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于KUBLER编码器8.KIS50.8550.1024.F014的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for KUBLER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
KUBLER编码器KIS50系列8.KIS50.8550.1024.F014技术参数及介绍
